MK System: cost-effective, flexible and modular

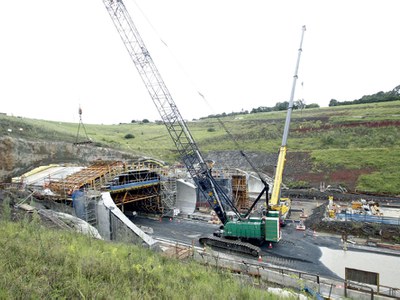

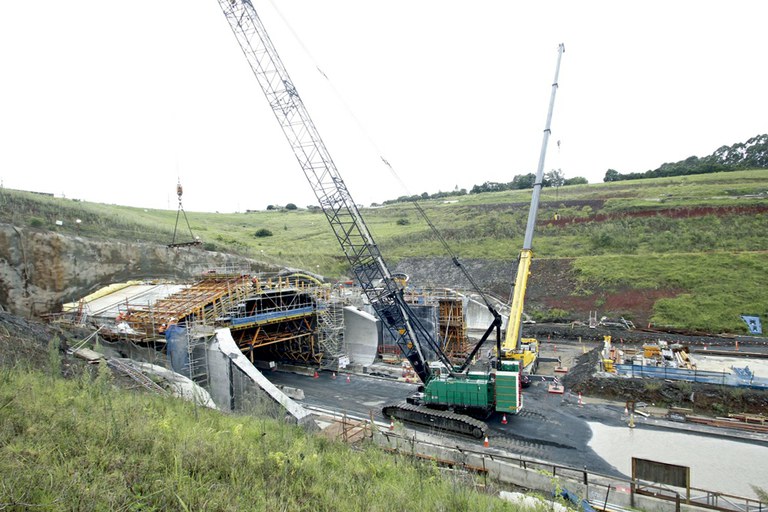

The 800 m long tunnel, with 19 m wide entrances at each end, was constructed to avoid gradients and to reduce environmental and acoustic contamination in the area.
ULMA have extensive proven expertise in carrying out this type of project in Australia: Legacy way, GUSBUS, Trackstar, among others, are examples of the possibilities provided by the MK form carrier for building tunnels of any radius, shape, and load-bearing capacity. The MK system has been reused in these projects, once again demonstrating its high performance, both under lease or purchased.
ULMA&UNI-SPAN professionals worked elbow to elbow with the customer on developing and designing the structure, as well as on site.
The supplied formwork exceeded 200 tonnes:

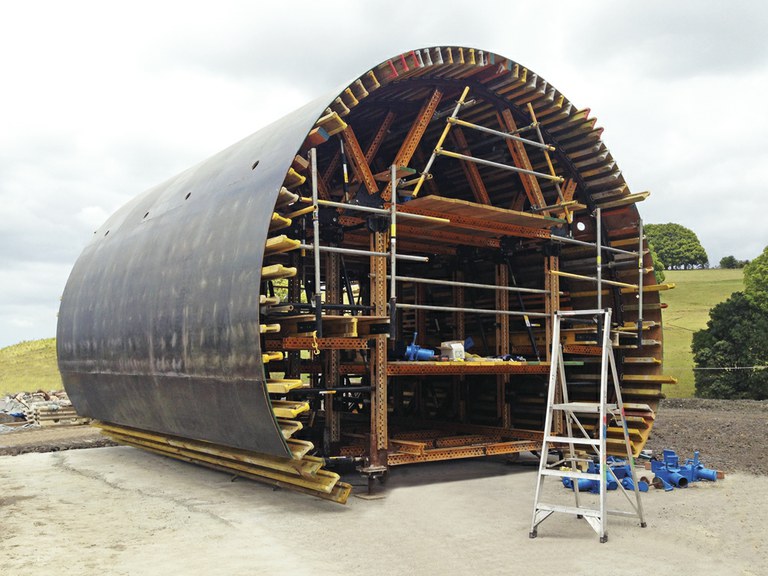

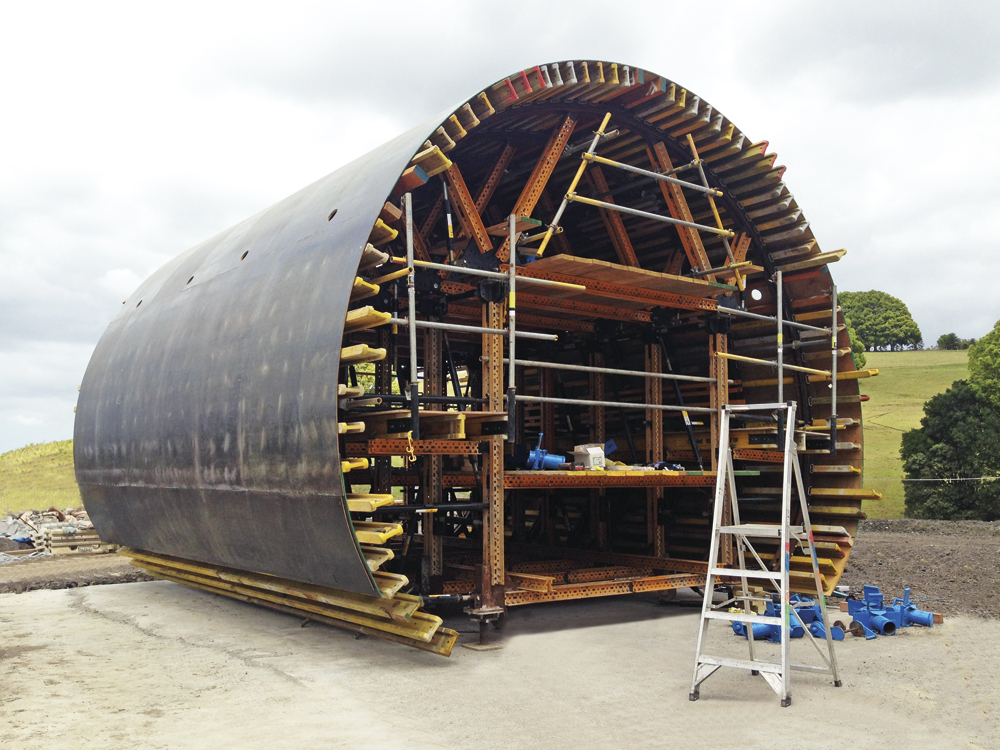

- 3 MK form carriers for cut and cover tunnel and ventilation shafts
- ORMA modular formwork: side wall exterior and vault roof
- VMK beam formwork: curved side wall

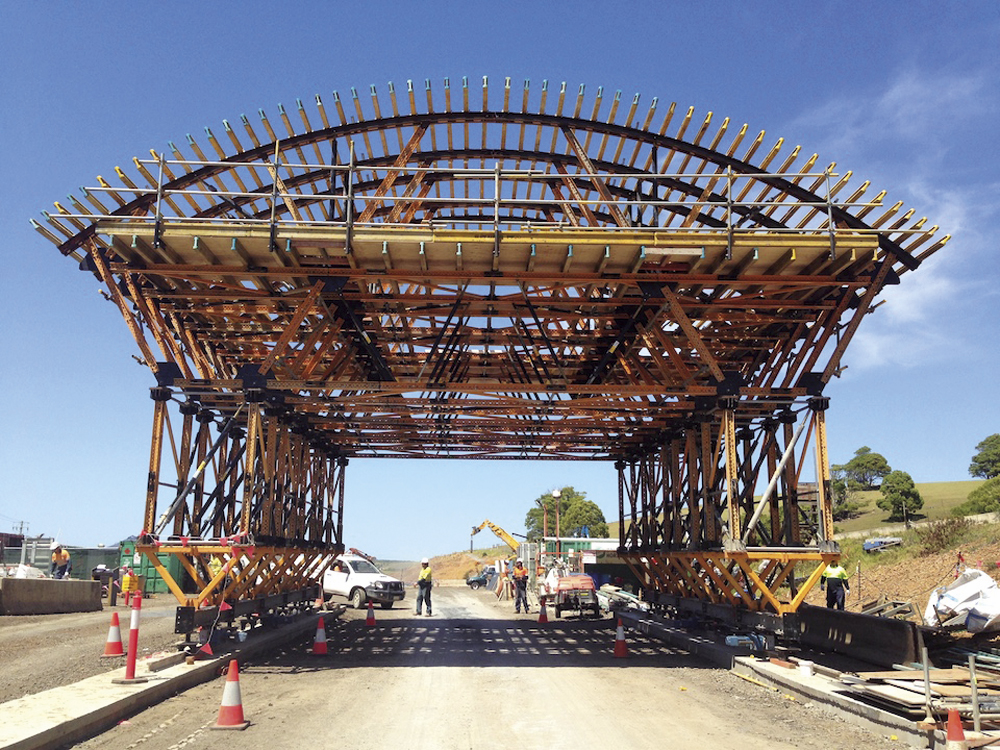

On this occasion, the side wall and vault were produced separately. This meant the side walls were built more quickly and allowed the MK carriage structure to be lightened, with the corresponding costs savings.
