Description

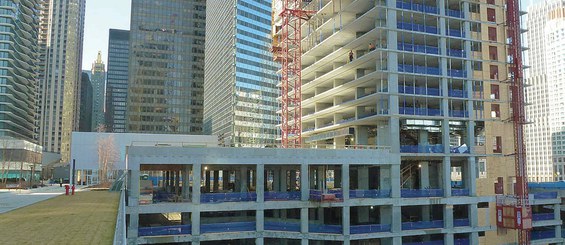

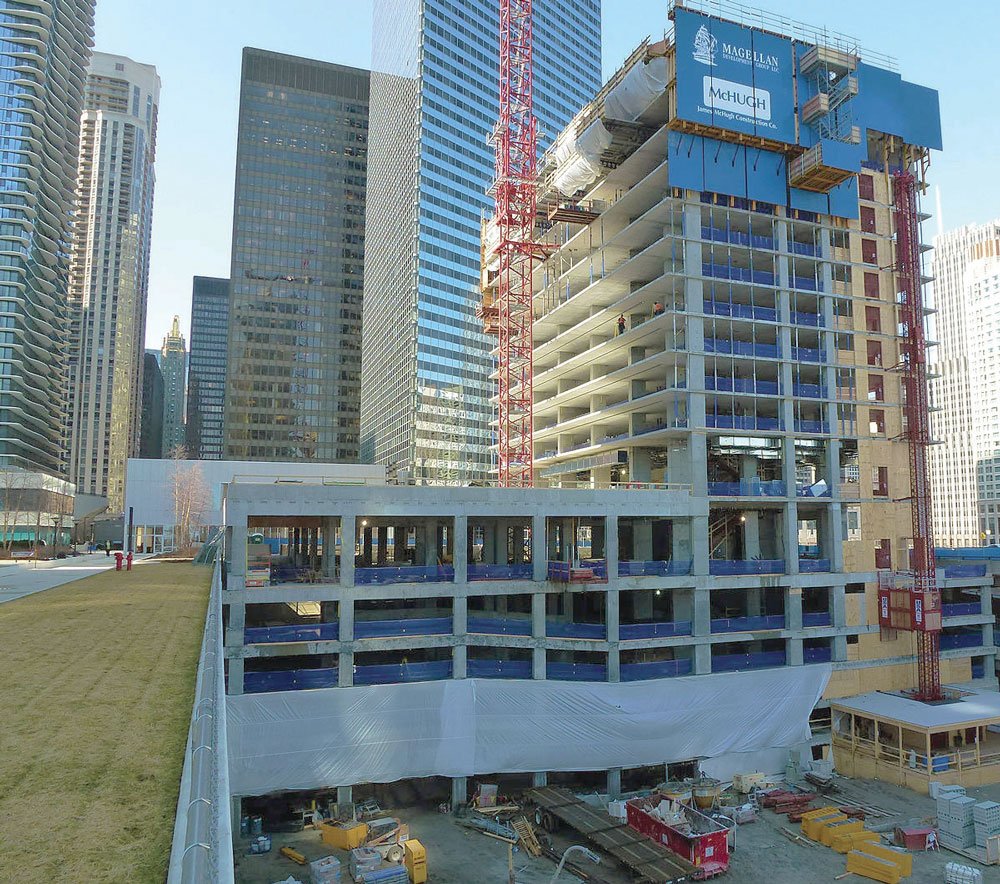

The Coast at Lakeshore East is a residential building of 45 floors and 129.5 m height linked to the nautical nature of the surroundings.
It has 499 apartments and 1,700 m2 of commercial area (parking, business centre, swimming pool, fitness centre and spa, etc.).

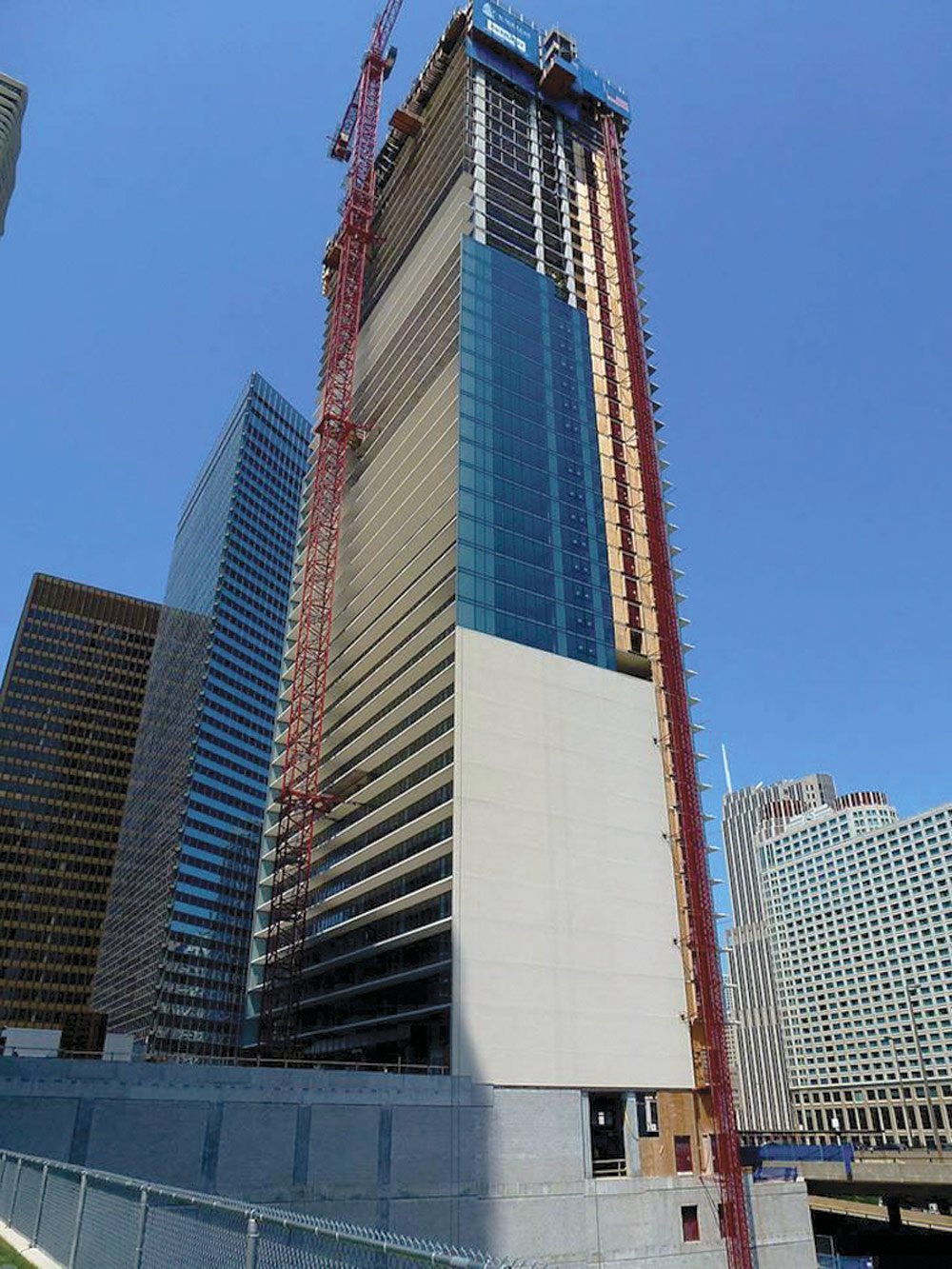

The avant-garde design of the east and west façades include curtain walls in a combination of translucent porous glass and aluminium. Its balconies at the north and south façades provide magnificent views of Chicago and Lake Michigan.
ULMA Solution

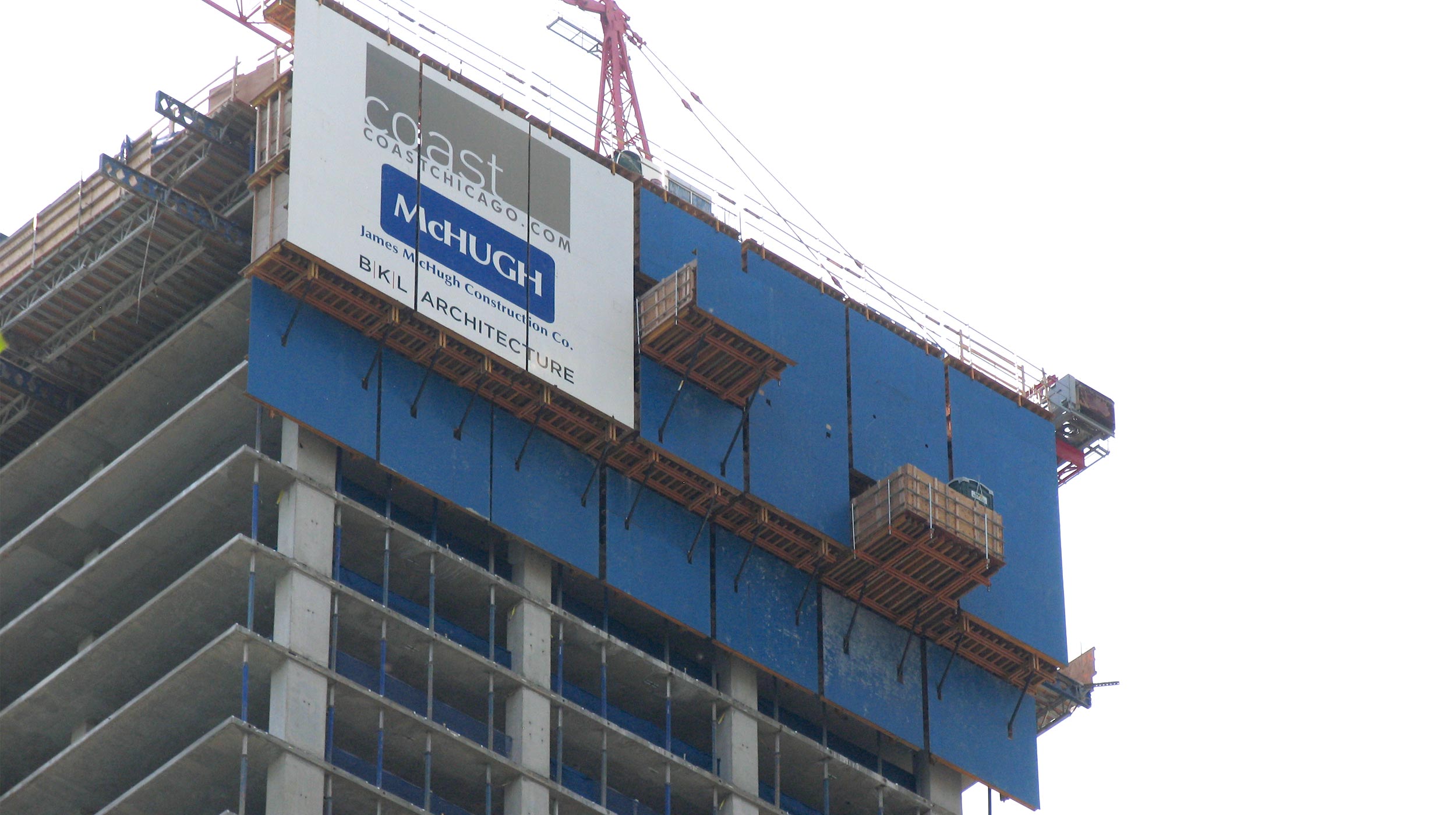

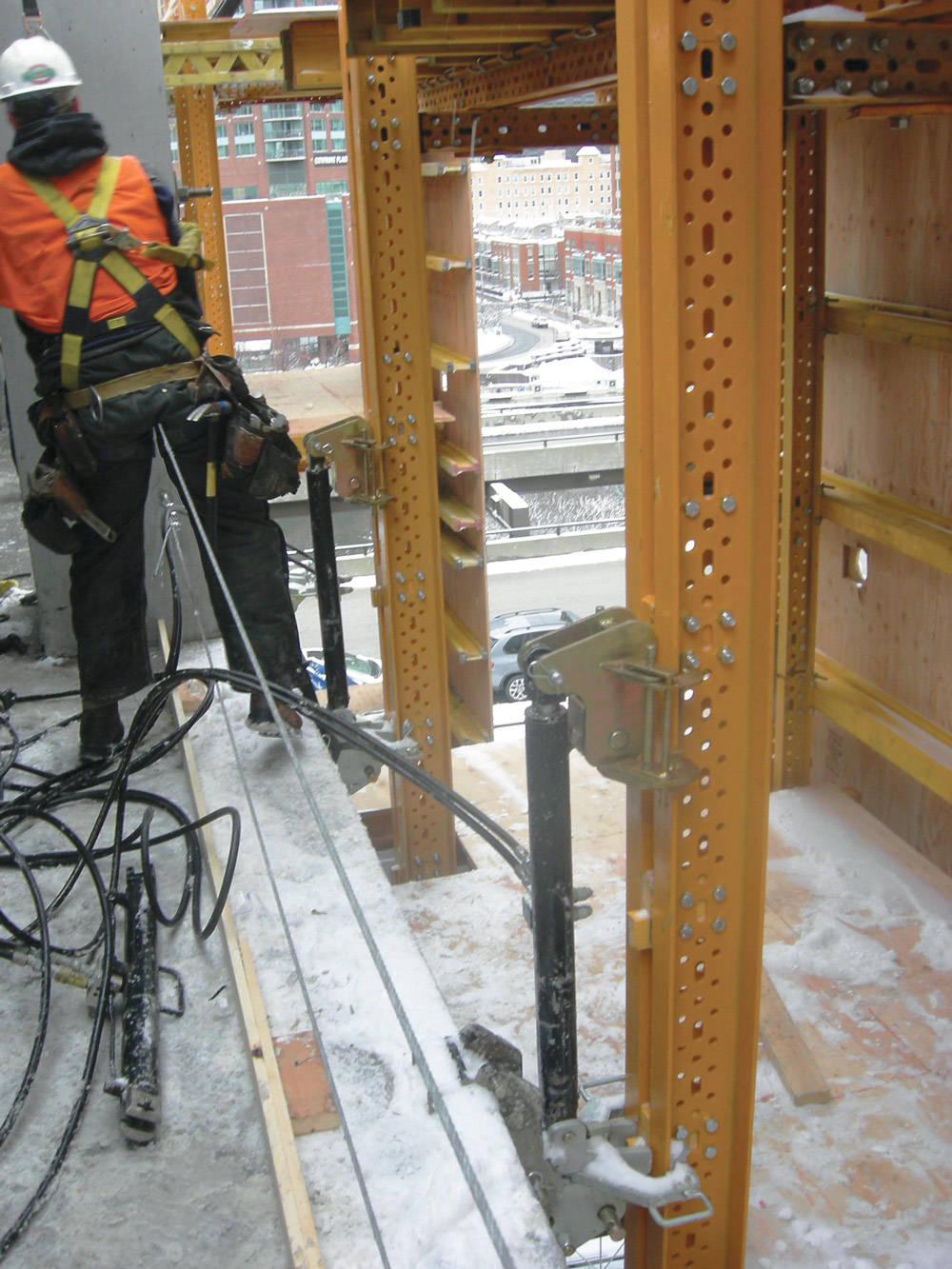

The HWS Hydraulic Windshield System secures works at the slab edge against falls from height as well as against possible adverse weather conditions. It is lifted with a mobile hydraulic system.
Different screen configurations (with or without platforms) provide storage space, access and ease the material transfer to different levels by scaffolding ladders.

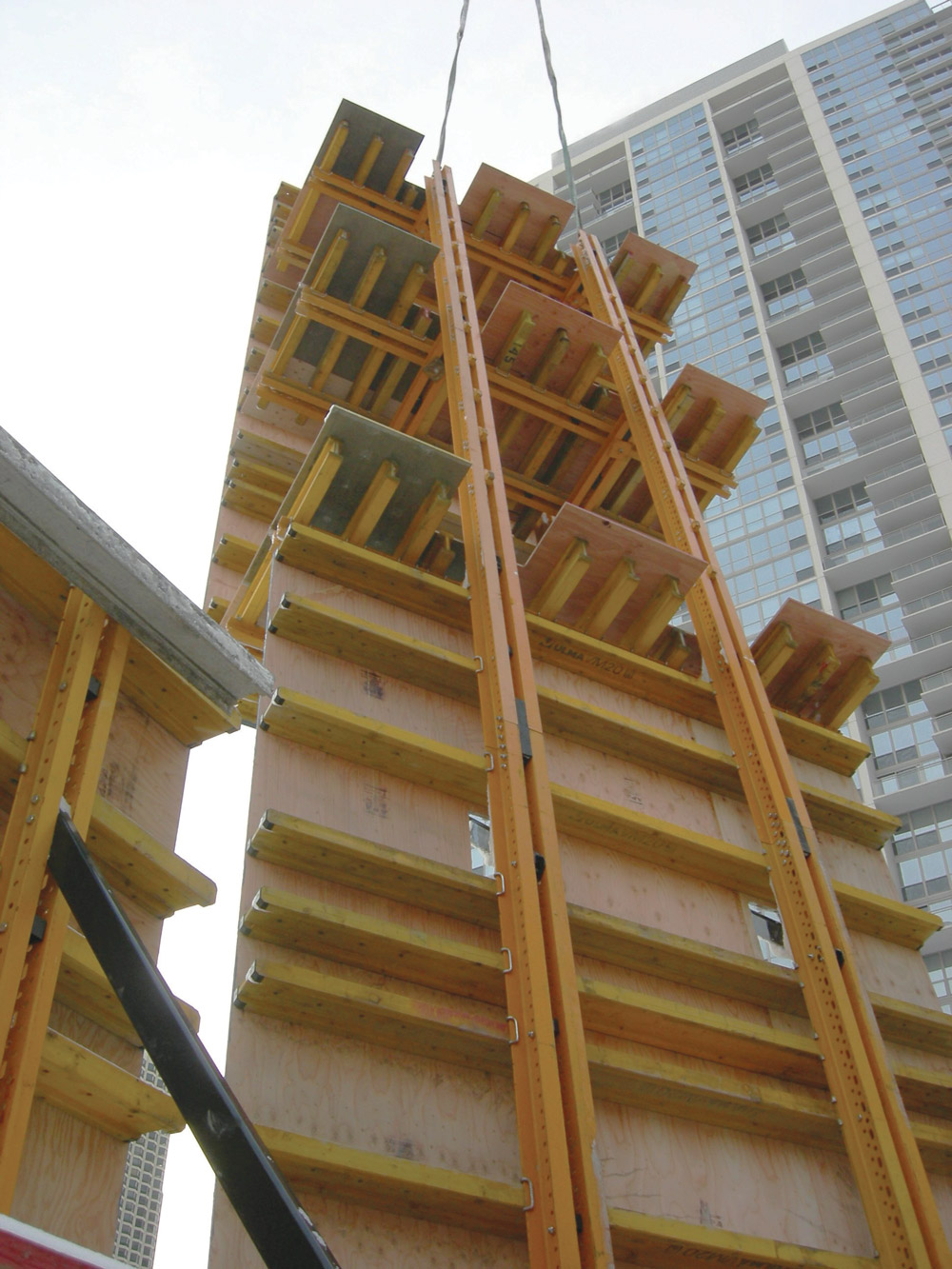

The walls and columns were formed with MEGAFORM and MEGALITE. These modular formwork systems include a wide range of panel sizes in imperial measurements adjustable to diverse geometries.
The slabs were built with large formwork tables supported on columns.
