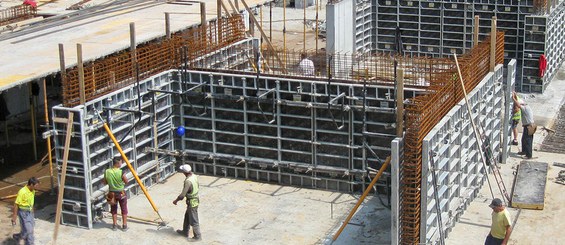

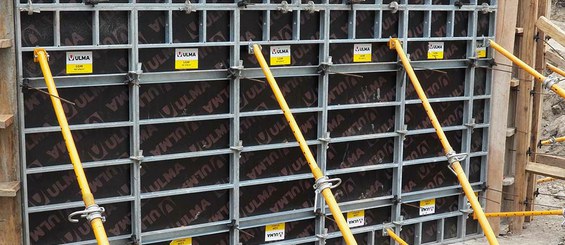

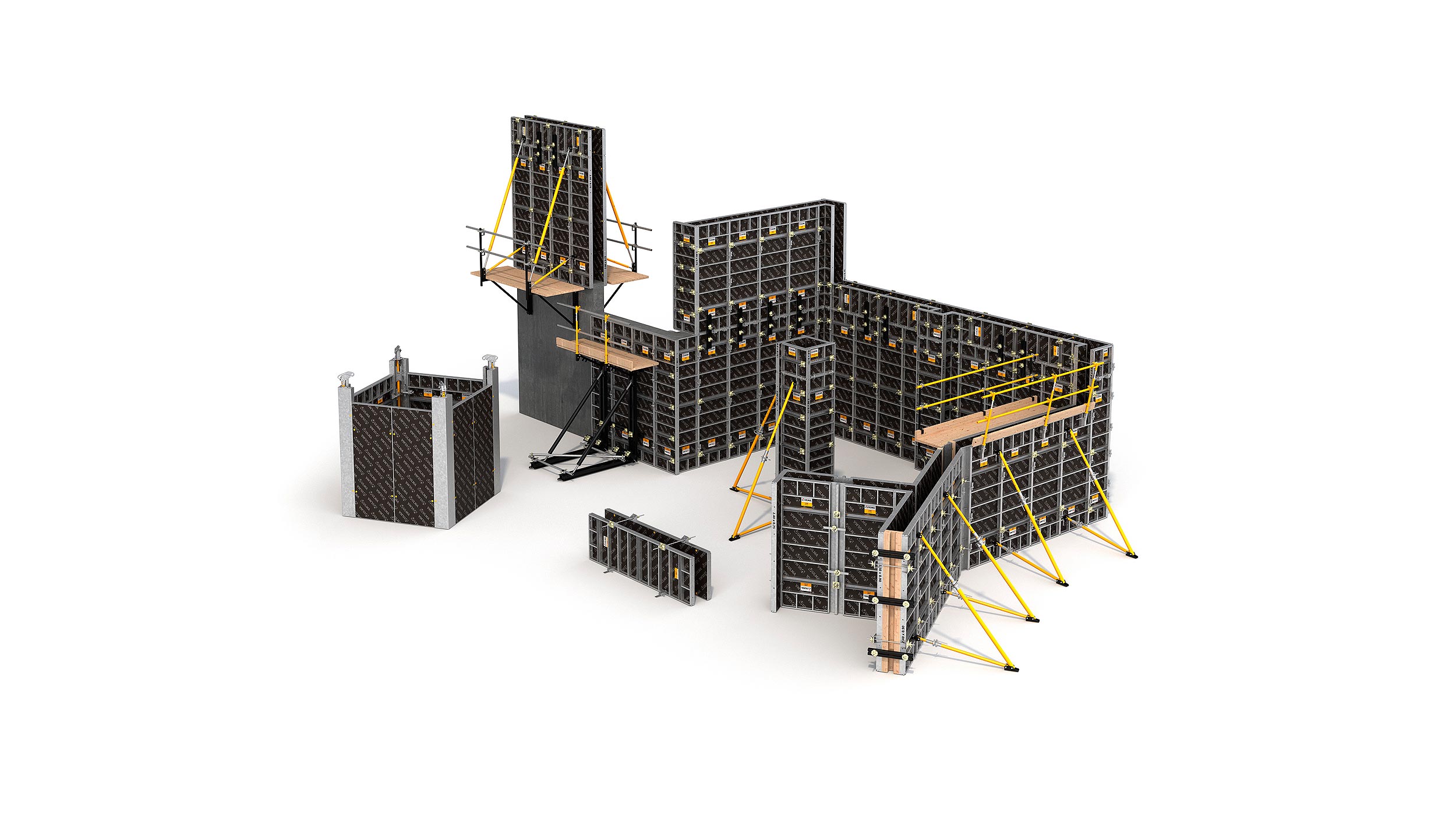

The LGW lightweight panel formwork is a versatile system for the solution of any vertical geometry in building construction. Manual handling or crane-assisted, it has a simple panel joining with clamps.
Remarkably strong and durable panel design with galvanised or painted frames and phenolic or composite board.
- Light panel formwork (30 kg/m²) for the solution of any wall, column and foundation geometry.
- High load capacity panels:
- Maximum constant pressure: 60 kN/m² (50 kN/m² for the 3 x 2.4 m panel)
- Maximum hydrostatic pressure for the 3 m panel range: 75 kN/m²
- Maximum deflections: line 6 according to DIN 18202
- Columns:
- Widths from 10 to 65 cm
- Maximum constant pressure: 80 kN/m²
- Wide panel range:
- Height: 3 m, 2.4 m, 1.2 m, 0.6 m
- Width: 0.9 m, 0.75 m, 0.6 m, 0.45 m, 0.3 m
- Big size panel: 3 x 2.4 m
- The shuttering face comprises a 15 mm phenolic birch plywood, providing an excellent concrete finish.
- Simply lighter:
- Up to 10% lighter than similar systems.
- It can be manually assembled reducing crane use on-site.
- Gang forming available for fast forming.
- Designed to last:
- High durability, hot-dip galvanised or painted panels.
- Reinforced steel frame on the corners protected against the damage of impact.
- Faster setting and forming:
- Panel sizes specifically designed to reduce joints between them and minimise infill areas.
- Less number of ties for a faster assembly.
- Easy and fast panel connection using easy-to-use clamps, easily fastened with a single hammer blow.
- Multifunctional panel range:
- A wide range of panels up to 3m high, perfect for complex geometrical structures.
- Higher load capacity and performance compared to other light panel formwork systems.
- The lateral holes in the panel profile are designed for bulkhead, corner and column solutions with universal panel.
Highly flexible crane-lifted climbing system, adaptable to inclined and curved walls. Minimum transport volume.
Crane-lifted climbing system optimised for large formwork gangs. Highlights: large working platforms and easy handling.
A simple solution for supporting shaft internal formwork. Perfect for elevator and staircase shafts, hollow piers etc.
Crane-lifted climbing system, perfect for the construction of double-sided walls and piers.

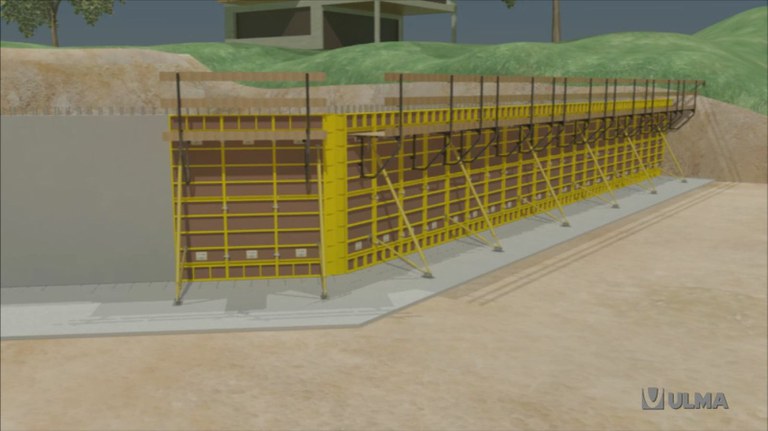

Movable system for the construction of very long single or double-sided concrete walls. Easy formwork erection and stripping.
