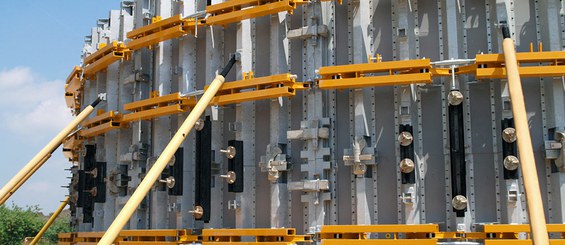

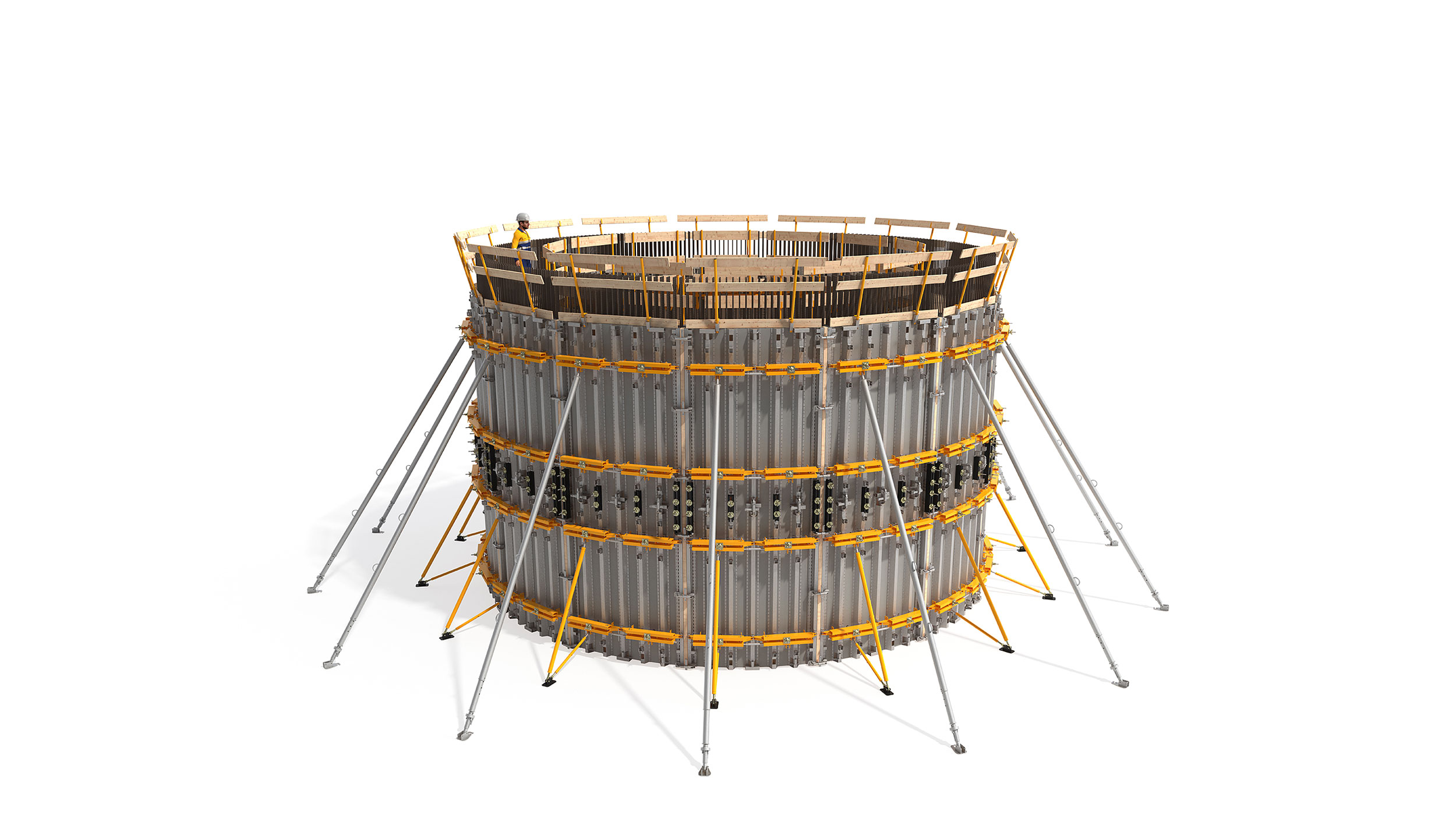

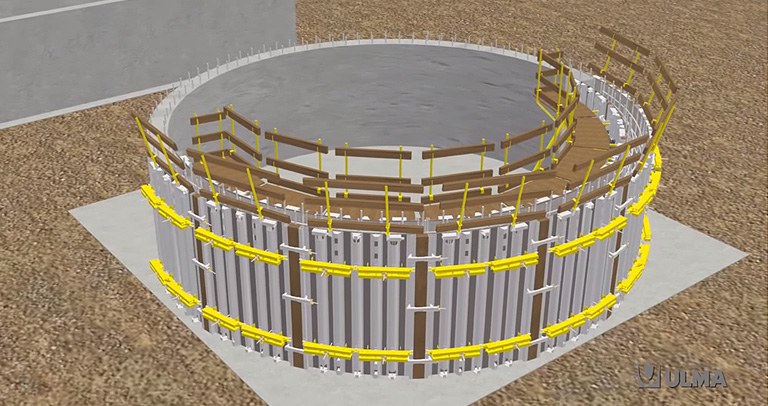

Adjustable modular circular formwork for the construction of curved walls. Optimised for energy sector constructions, such as water tanks, gas tanks, etc.
This is a high-strength durable circular formwork, with fast curving system and excellent concrete finishes.
- Basic components of the BIRAMAX formwork system: outside panel, inside panel and clamp.
- Maximum pressure: 60 kN/m2 (line 6, tab. DIN 18202)
- Minimum curve radius: 2 m
- Models with varied panel height: 3 m; 2 m; 1.5 m
- Models with varied panel width:
- Exterior panel: 2.25 m and 1.125 m
- Interior panel: 2.2 m and 1.1 m
- Guaranteed safety in the assembly and concrete pouring phases by means of different safety platforms.
- Durable, robust panels made of galvanized steel
- Reusable plywood is easy to maintain and repair
- Adjustable:
- Easy curving system with only 4 adjustment points
- Simple placement of compensation plates between panels
- Efficient:
- Excellent concrete finish thanks to the plastic-coated plywood panels
- Only 2 anchors at height
- The same elements are used for vertical and horizontal joints
- A wide range of panels for all circumferences and heights. Interior and exterior panels are differentiated by colour
- Assemblies are easy to handle with different lifting systems
- Compatible with ULMA´s ORMA modular formwork
The new lock will allow river navigation between Cremona and Piacenza, after a period in which decreased water flow has made travel impracticable.

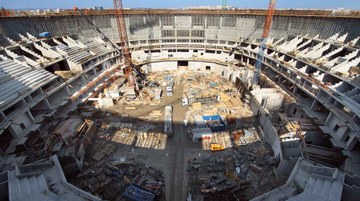

This was a comprehensive project requiring many distinct solutions, the most spectacular of which was the shoring for the upper ring, set at a height of 40 m with a circumference of 400 m.

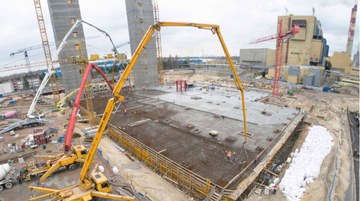

The Kozienice power plant, working since 1972, is the second largest coal power station of Poland and the first one with regard to productive capacity.
