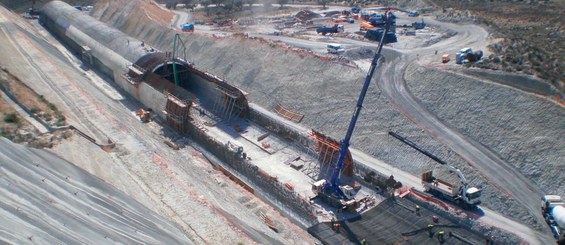

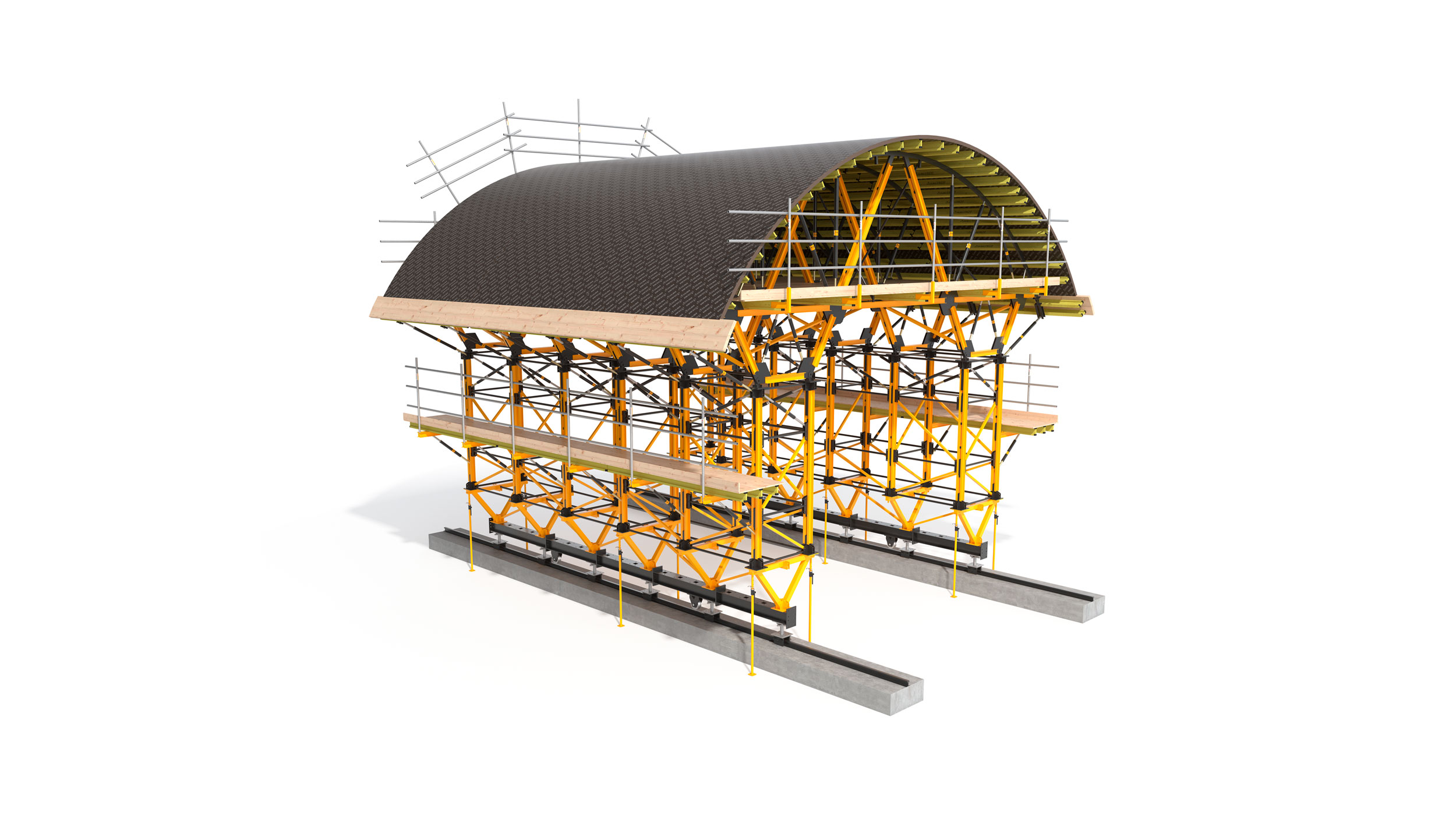

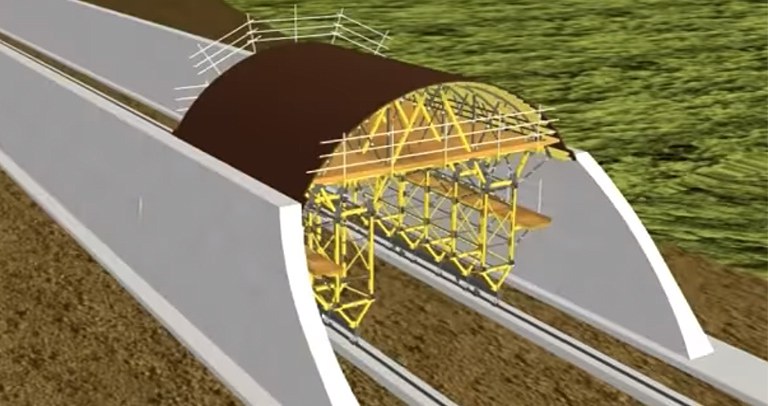

This is a mobile formwork carriage designed for the construction of cut and cover tunnels. It combines the shoring structure with the formwork that forms the tunnel vault.
Like the formwork carriage for mine tunnels, this is based on the MK System, which gives the system great versatility and load bearing capacity, while maintaining mobility during the successive phases of the construction process.
It also includes working platforms with their safety handrails, access stairs and other elements, guaranteeing a high level of safety.
- Lightweight structure with a double-sided formwork base, designed for exterior pouring
- Standard shuttering face of phenolic plywood
- Manual or hydraulic advance
- Cost-effective. Composed of fully reusable standard components available for rent
- Made with the MK system, which employs the same elements for different applications, allowing for extreme versatility and high load-bearing capacity
- Quick work cycles. Easy use and repeatability
- Lightweight. Large formwork units assembled without the need for a crane
- Manual or hydraulic advance
- Integrated working platforms and safeguards

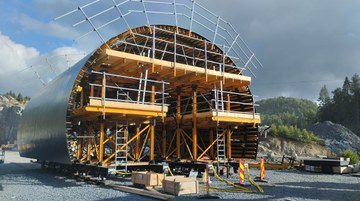

Construction of cut and cover tunnels for Bjønnås and Grenland tunnel belonging to the new E18 motorway that will connect the towns of Langangen and Rugtvedt.

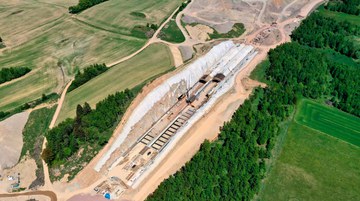

The S3 motorway construction project comprises a new road tunnel (TS-32), around 320 m long, on the Legnica-Lubawka stretch near Gostków, Poland.

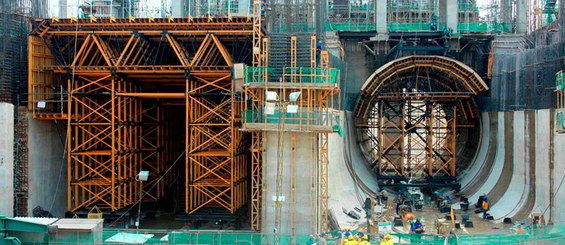

With the MK system we are capable of building formwork carriages that allow us to construct any type of structure with any geometry or load distribution, as was recently demonstrated in Australia.
