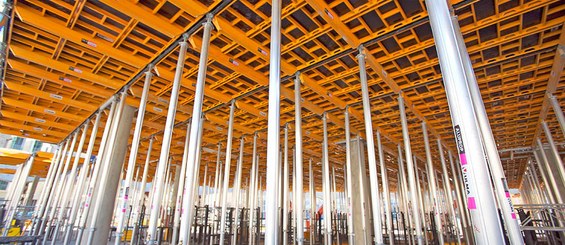

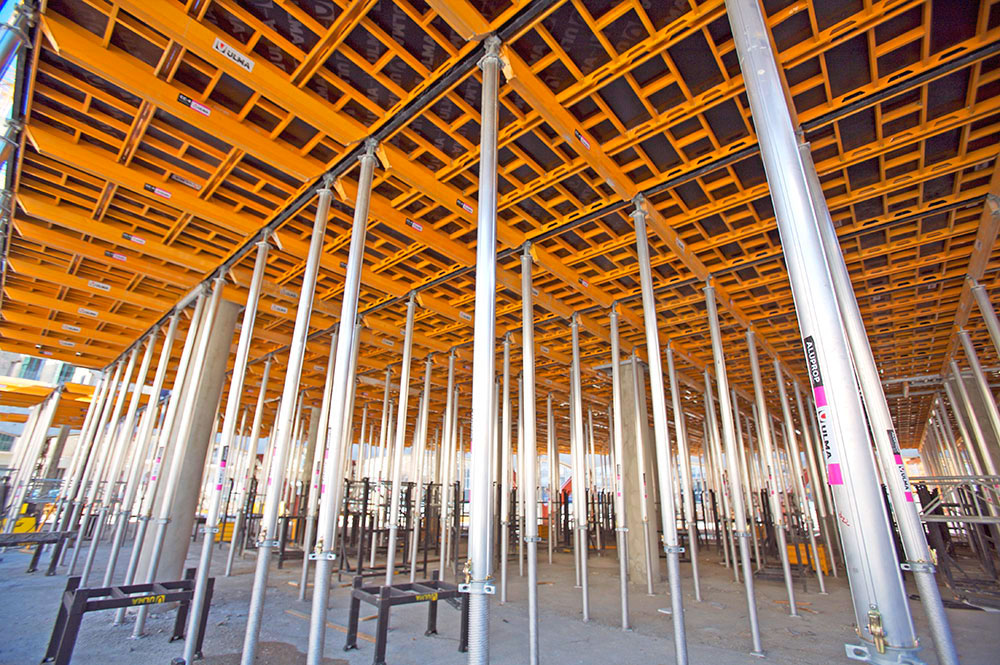

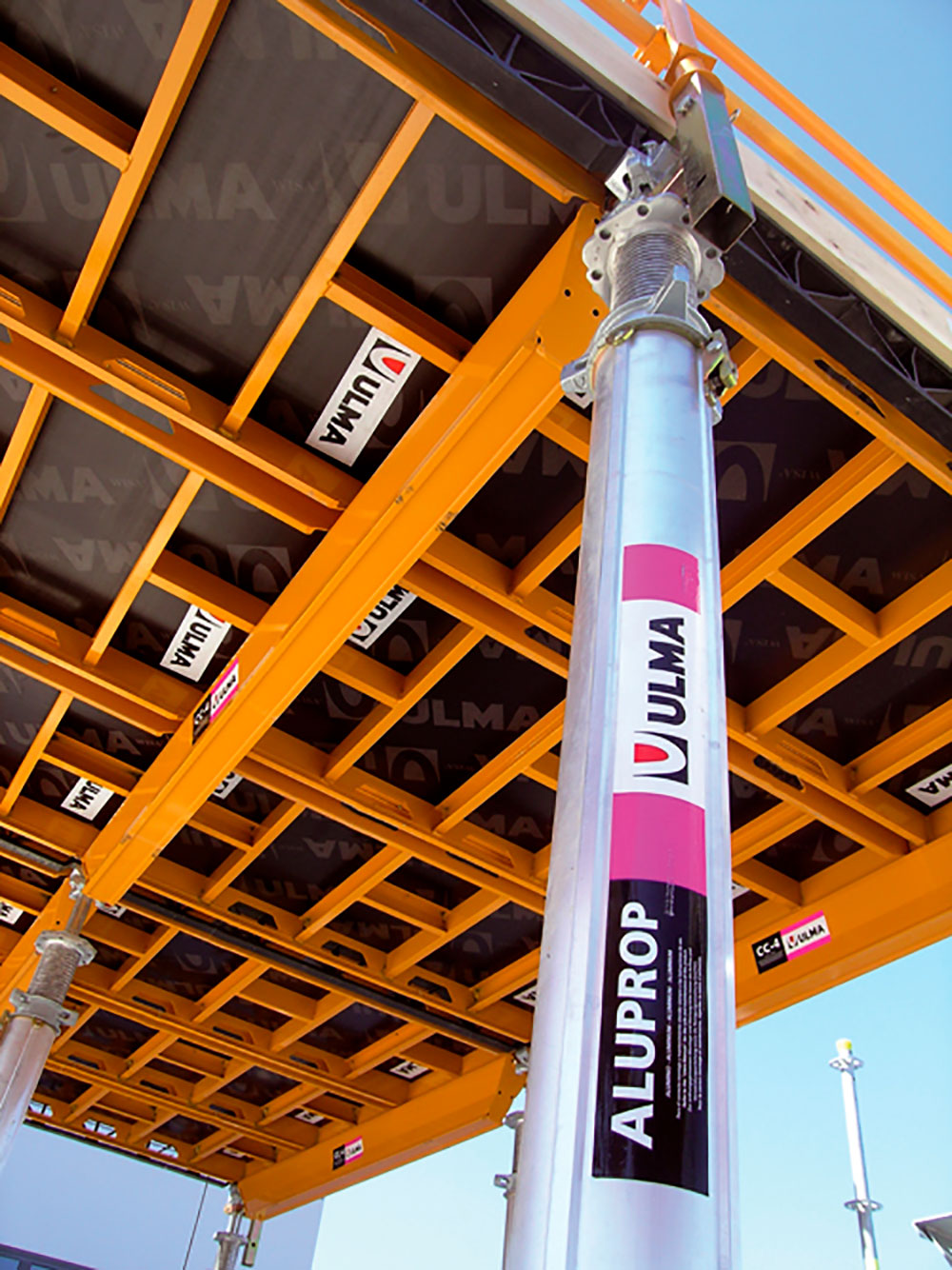

ALUPROP is designed for the shoring of slab formwork systems and generally for propping. With bracing frames to enable joining the props and erect shoring towers.
Product certified according to European Standard EN 16031.
- Perforated wing nut facilitates prop removal
- Self-cleaning thread eliminates concrete on the inner tube
- Locking latch between outer tube and nut
- Light aluminium prop
- Long durability ensured
- High load-bearing capacity
- Captive Inner tube fixed to the outer tube with unintentional disengagement system
- Easy and quick length adjustment
- Maximum height with single prop: 6 m (7 m with extension 1 m)

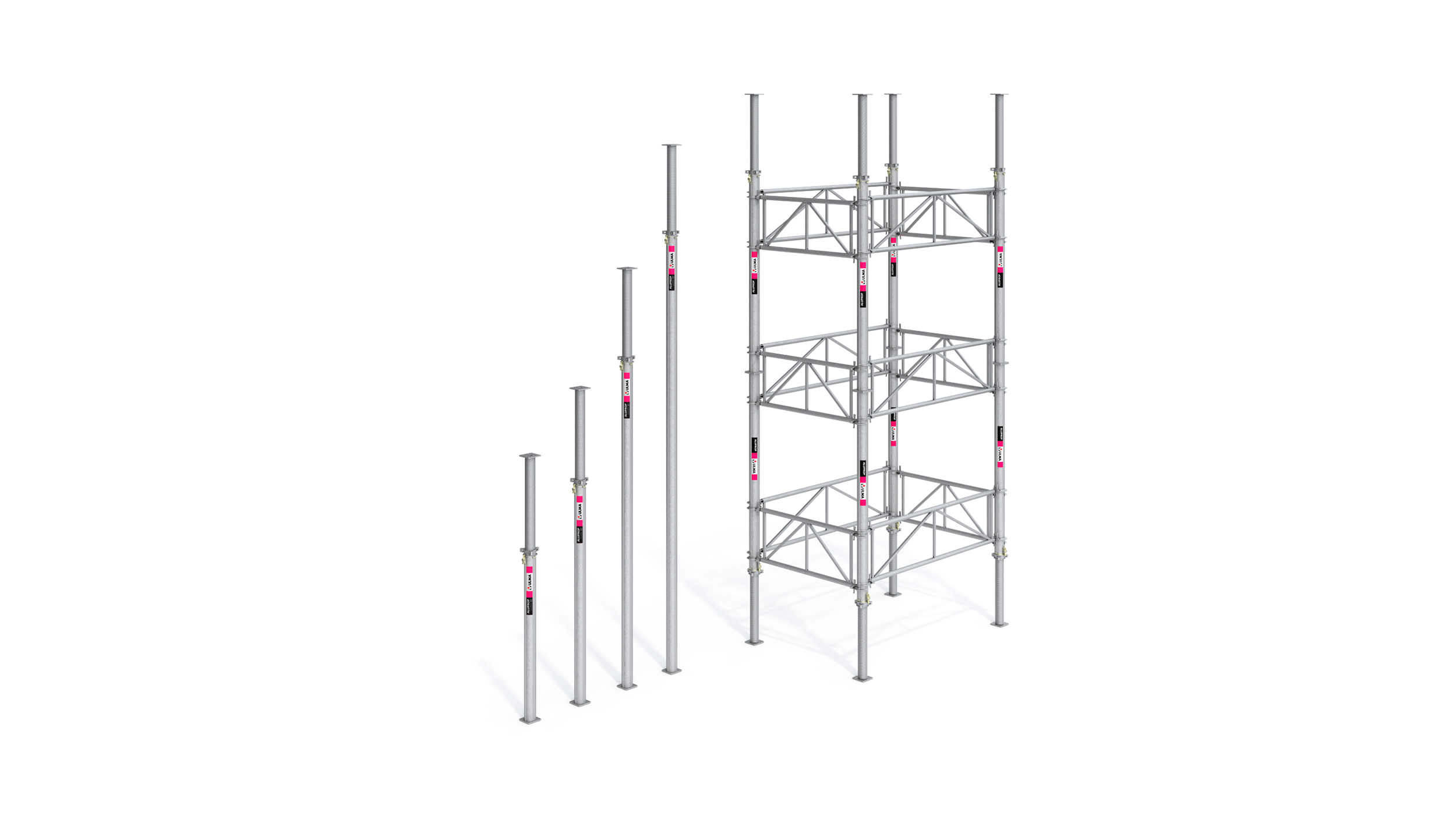

- Prop can be braced. Bracing frames are easily fixed to the outer tube of the prop with bracing hooks and wedges already built-in in the bracing frame
- Possibility to gain height by putting prop on prop connected with ALUPROP clamp or with bolts. Suits assembly of very high shorings

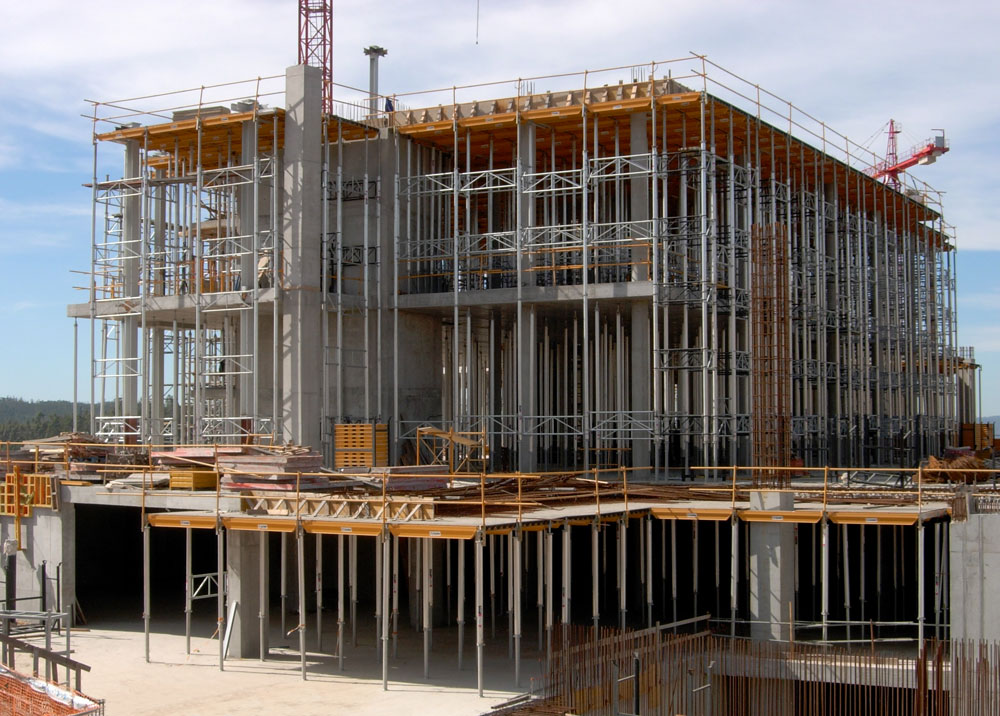

- Maximum tower height: 12 m
- The possibility of installing working platforms eases the erection of shoring structures and the handling and placing of the formwork at the top
- Shoring structure can be assembled in horizontal position on the ground. Subsequent lifting and placing with crane. Enables ergonomic and safe working conditions for workers
- Certified product
WaltherPark is an urban requalification project in Bolzano, Italy, for the restructuring and enhancement of a central district located just next to the railway station and Piazza Walther, the city's main square near Bolzano Cathedral.
The redevelopment of the oldest hospital in New Westminster, Vancouver, will expand its services with new facilities: a 10-storey intensive care building, expansion of the emergency and maternity ward, new operating theatres, among others.
Crossing the Fraser River, the Pattullo Bridge is a key connection between New Westminster and Surrey in British Columbia. The bridge is being replaced with a new bridge that will improve safety and reliability.

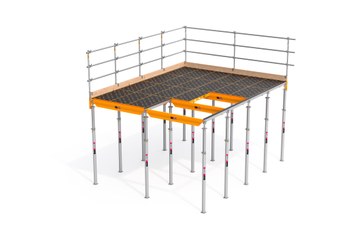

Very flexible and safe formwork that provides high performance rates on site. Perfect for solid or lightened slabs. Highlights: Fast striking with the drophead system and handset components.
