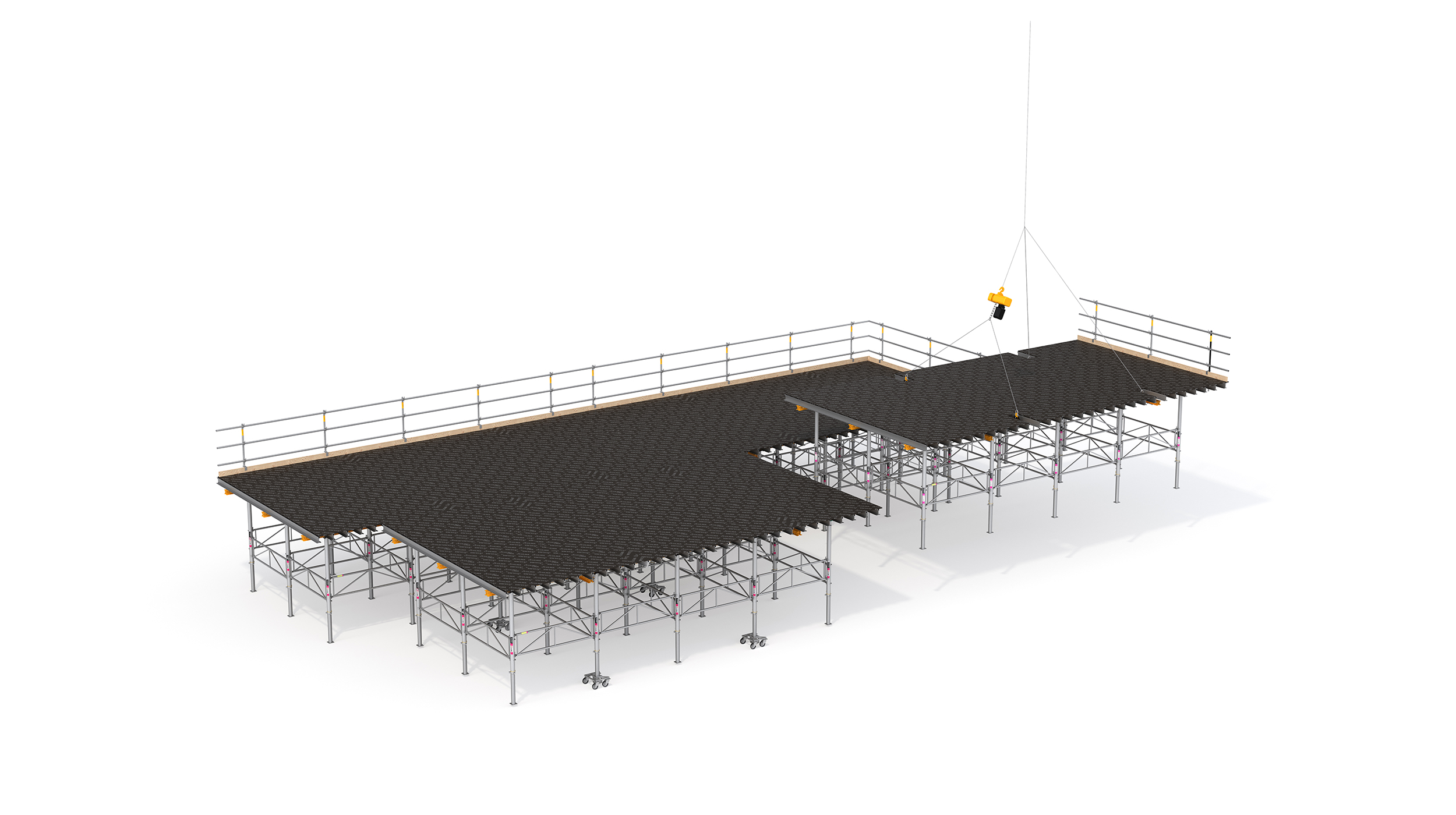

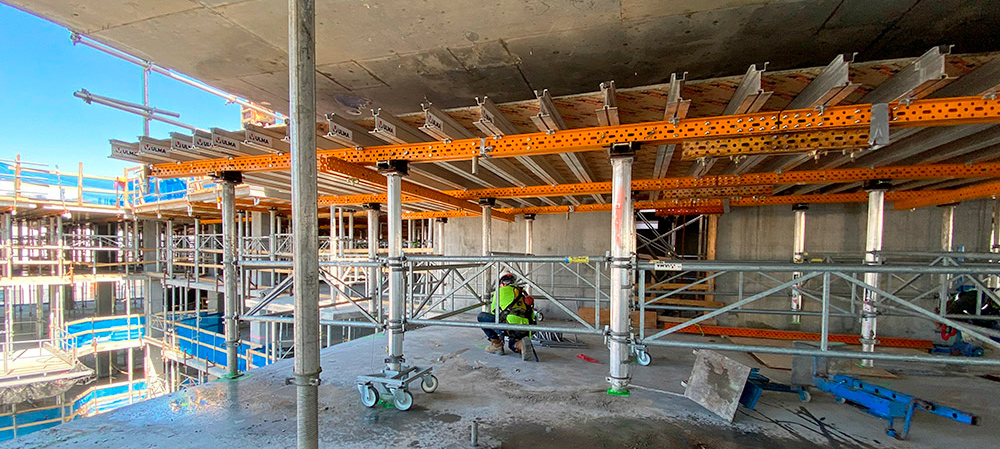

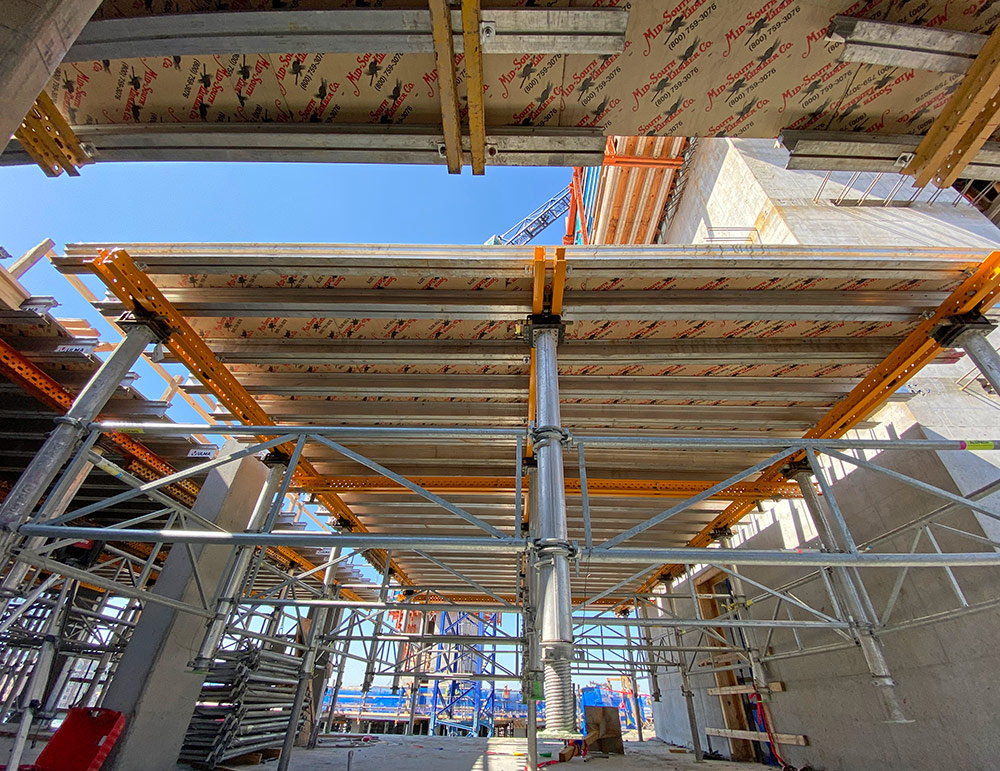

The VR-L table is a fast and safe shoring system designed to reduce labor costs and formwork cycle time by working with assembled tables that only need a one-time assembly at the jobsite. These tables are suitable for use on hotels, airports, high-rise buildings, hospitals and shopping centers that have large areas with regular geometries.
- VR-L table:
- Dimensions: Tables up to 27 ft. in width and 40 ft. in length – 1080 sq. ft.
- MK-120 serves as the main beam of the table.
- Tables can be up to 16’ wide with 2-lines of support, and up to 27’ wide with a 3-lines of support.
- Plywood and ALUPROP post shores are used to infill areas between tables.
- Fast assembly and stripping save time and minimizes on-site material requirements.
- Assembled tables equal fast cycling – High efficiency and productivity.
- Easy maneuvering provided by swivel wheels on dollies.
- Flying table forms components can quickly be taken apart and used for other solutions.
- Safety:
- Tables require a one-time assembly, reducing the handling of components at great heights.

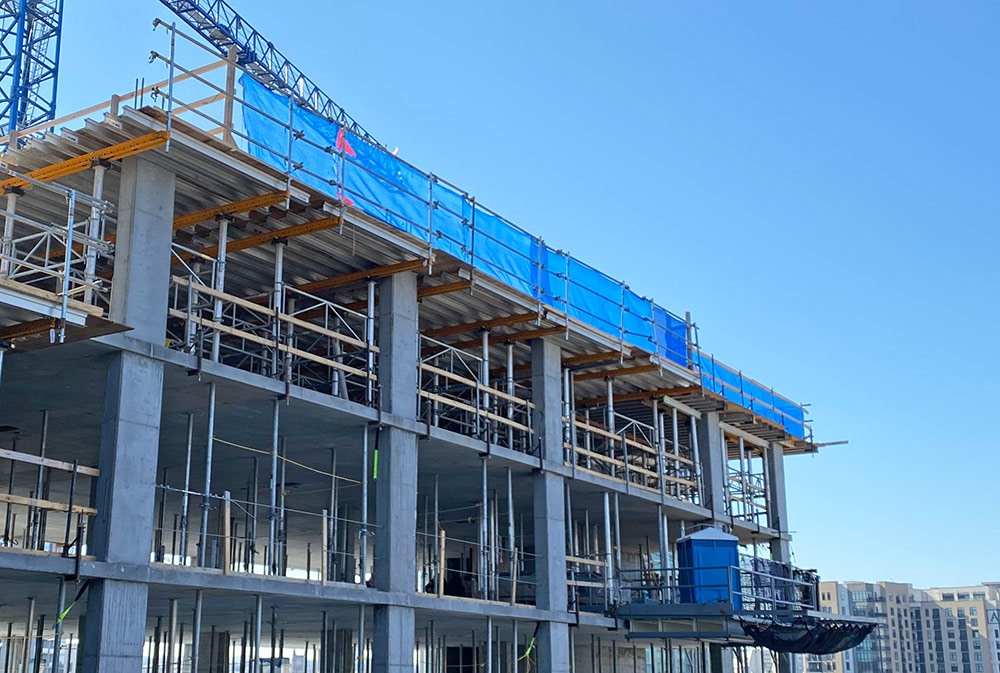

- Built-in safety handrails provide a safer work area at the perimeter of the building.

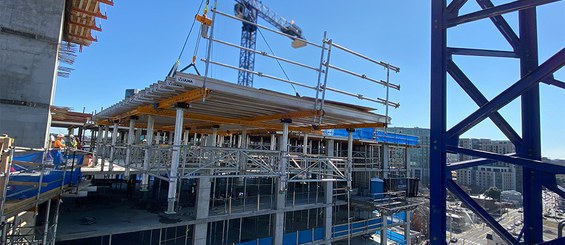

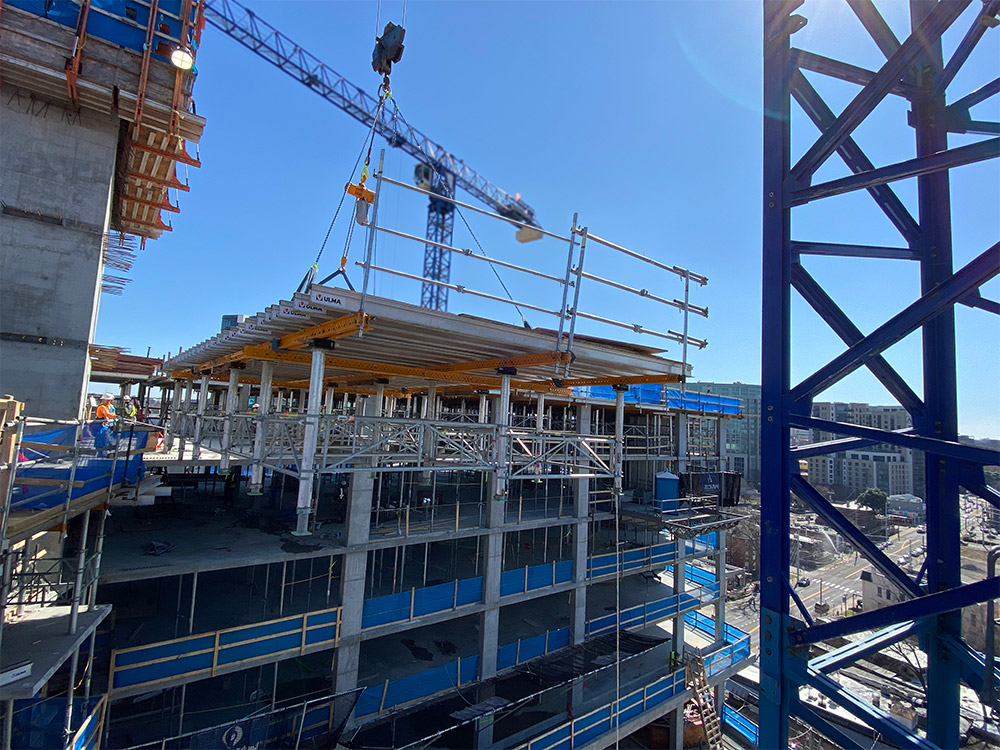

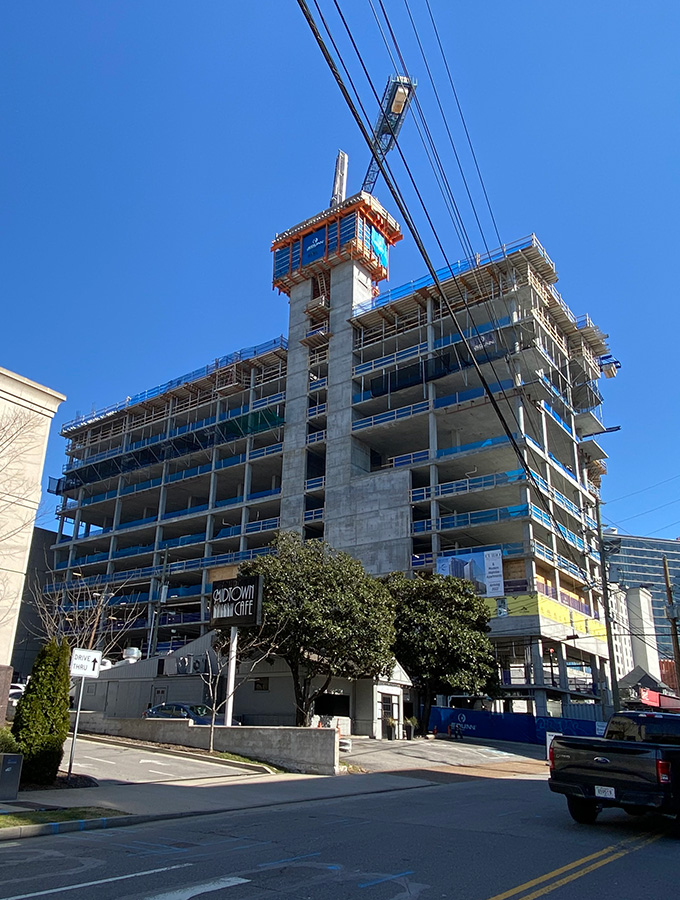

Only five minutes from Downtown, the 282’ height superstructure composed of hotel and residences will be located on a highly populated corner of Broadway. 1812 Broadway will be an exquisite offer to visitors and locals.

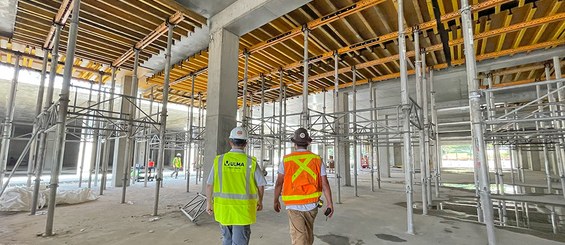

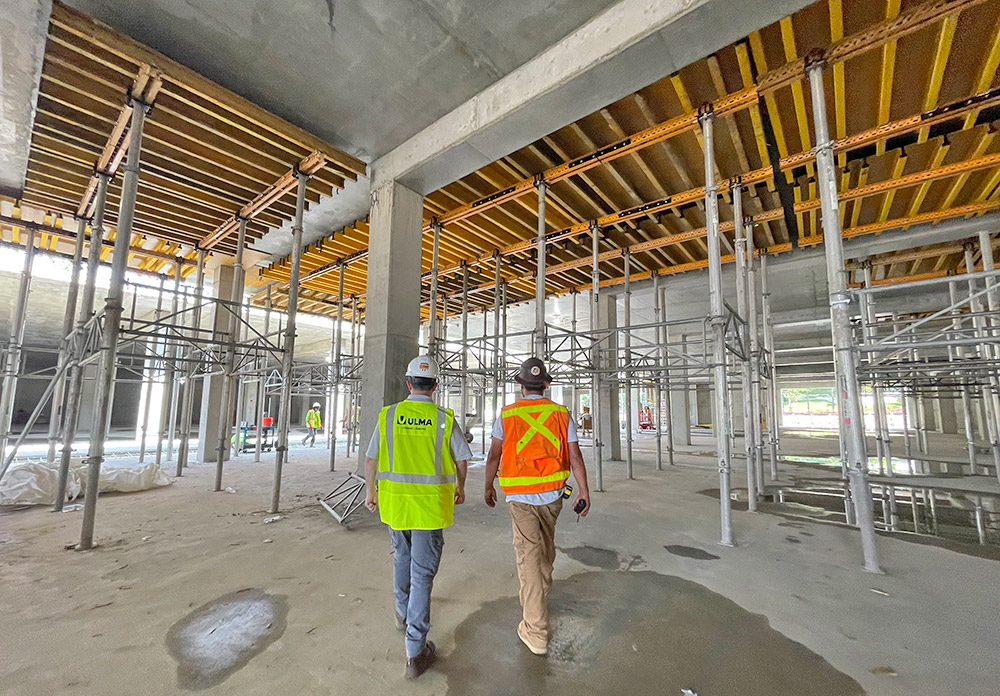

High load-bearing capacity shoring posts to shore horizontal formwork and to meet shoring requirements, including re-shoring.
Double T-section timber beams for multiple forming and shoring applications. Lightweight, heavy duty and fitted with plastic caps to protect them against impact and moisture.
High-quality and cost-effective plywood to combine with ULMA Construction shoring systems. Suitable for many uses, it offers excellent strength on construction sites and exceptional concrete finishes.
