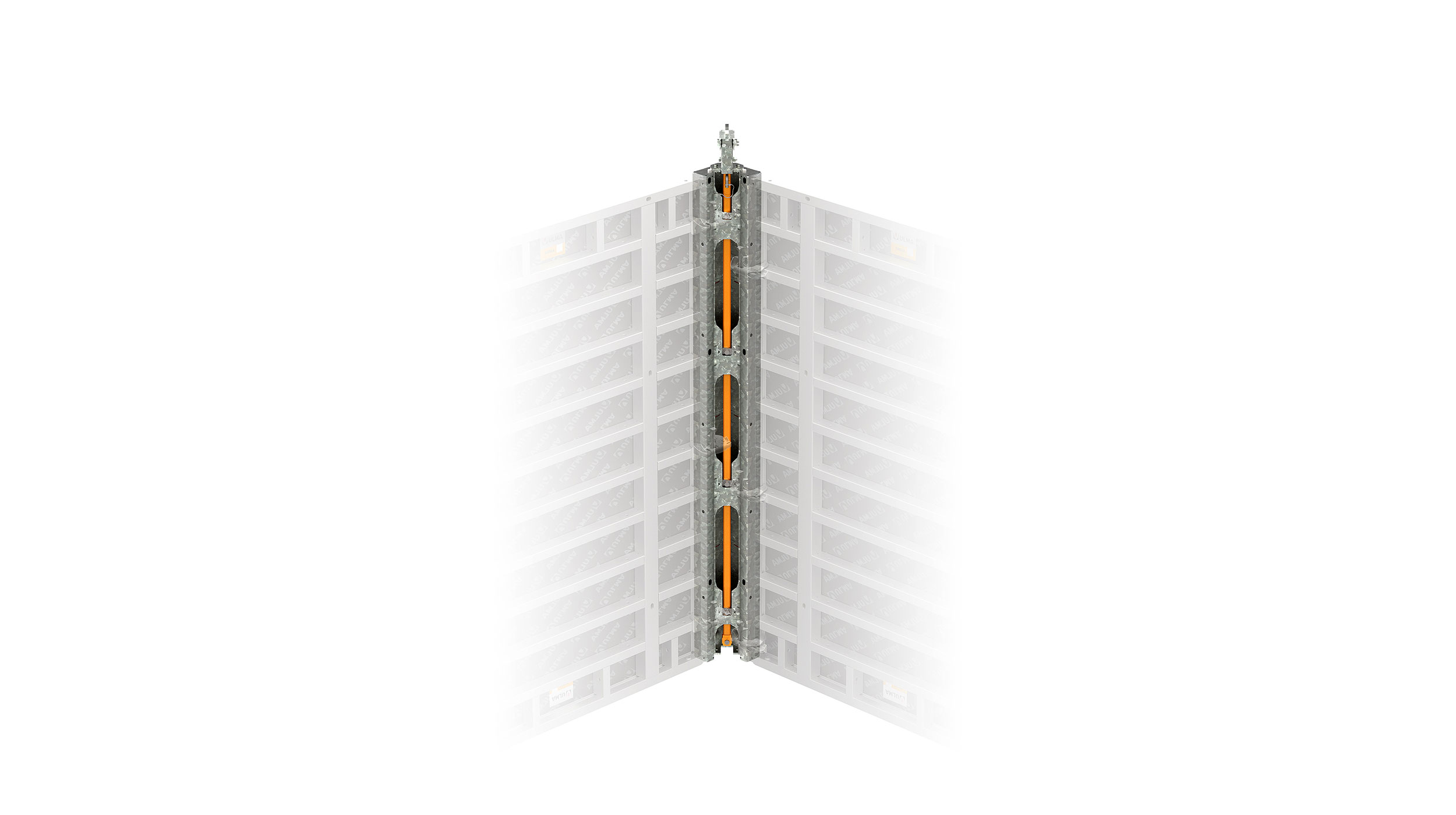

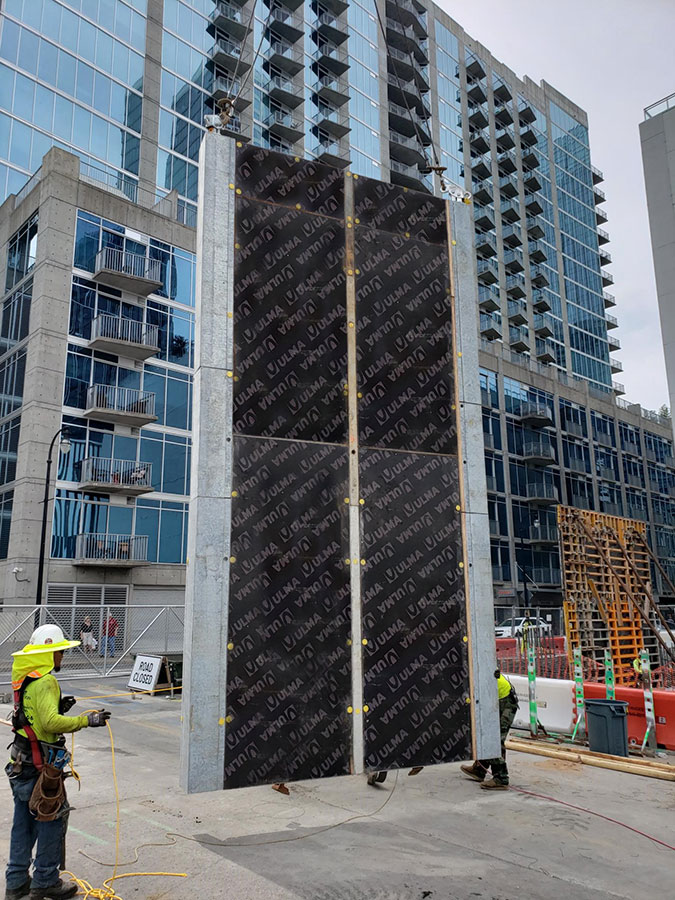

The STRIPPING CORNER MAX facilitates and simplifies wall formwork erection and stripping in elevator shafts or stairwells, hollow piers, or any other type of interior walls.
One person can quickly and safely activate the entire system with one single movement.
Saves construction time: no need to dismantle formwork panels from the stripping corner.
- The maximum pressure to withstand is 1670 psf.
- Available in three heights: 4’ – 8’ – 10’.
- STRIPPING CORNER MAX can be easily stacked to achieve different height combinations: 12’ – 14’ – 16’ – 18’ – 20’.
- Setting and Stripping:

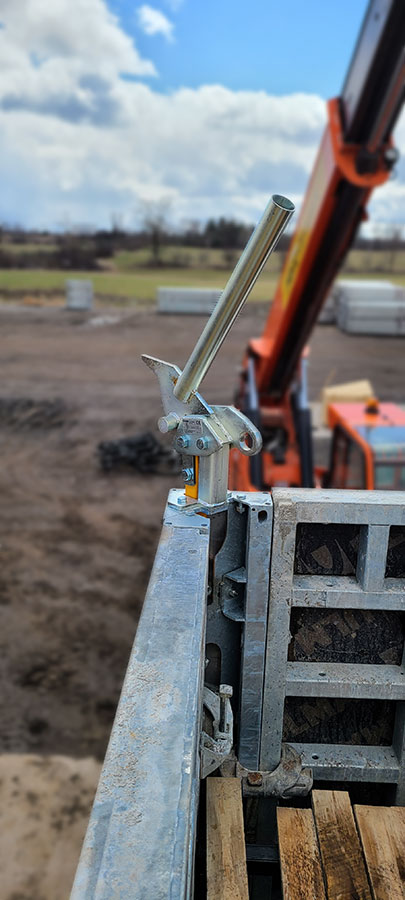

- Manual Operation: Upward or downward movement using the stripping lever to set and release the corner and formwork

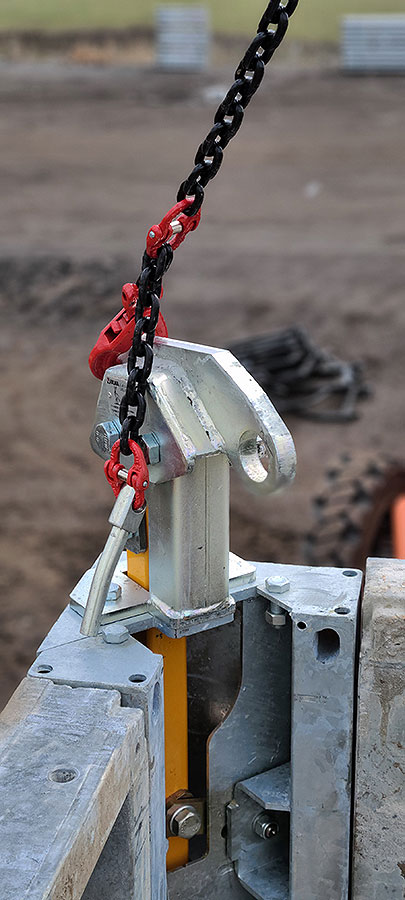

- Crane assisted operation: By attaching a chain to the holes in the stripping head

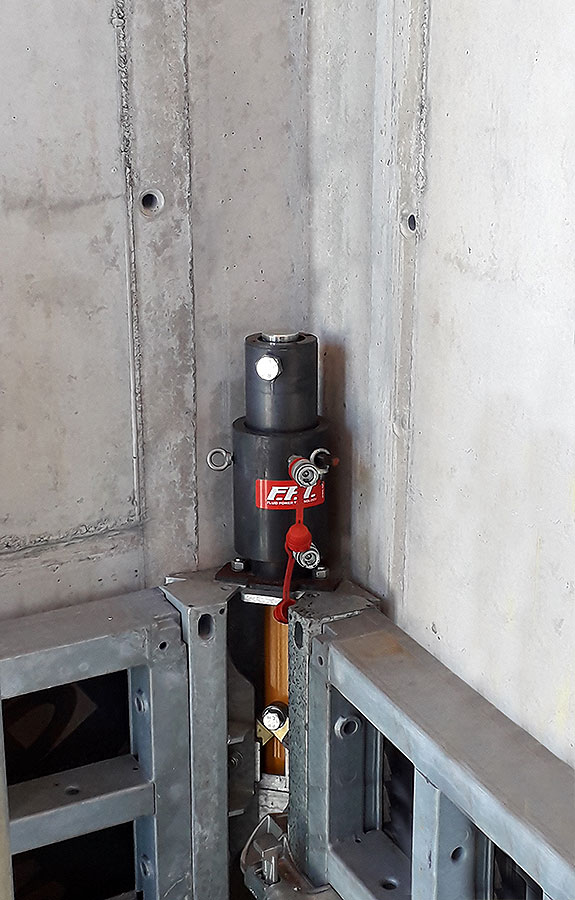

- Hydraulic operation: With the push of a button, vertical tube moves up or down to set and release corner and formwork
- (Open) pouring position dimensions: 1’ x 1’.
- The formwork can be withdrawn by up to 2’’ from the wall (closed).
- Holes available for the passage of tie rods.
- Highly efficient: simple and intuitive operation for setting and stripping
- Easy maintenance thanks to its robust galvanized steel frame and its simple and open design.
- Saves construction time: no need to dismantle formwork panels from the stripping corner.
- Galvanized steel form face.
- Versatile: the STRIPPING CORNER MAX can be easily combined with other ULMA formwork systems (MEGAFORM, MEGALITE, and MK20 FORM).

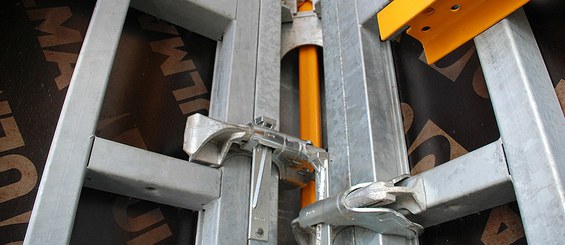

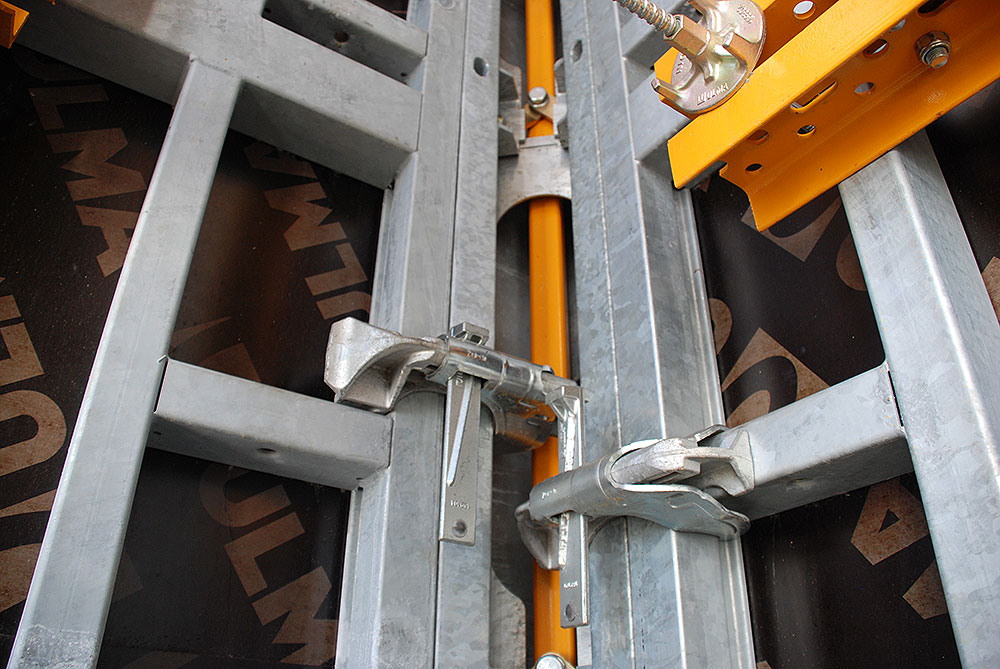

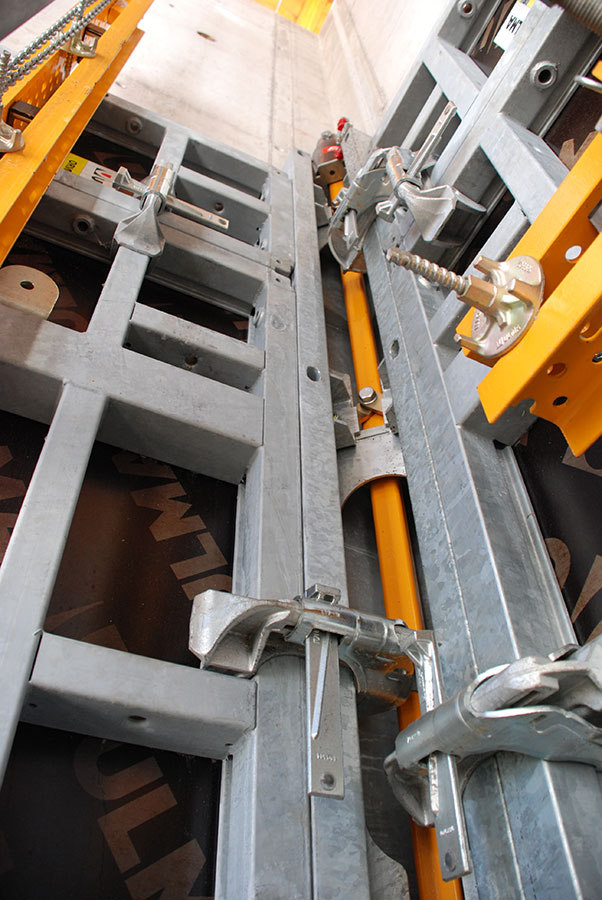

- Quick connection between panels using clamps.

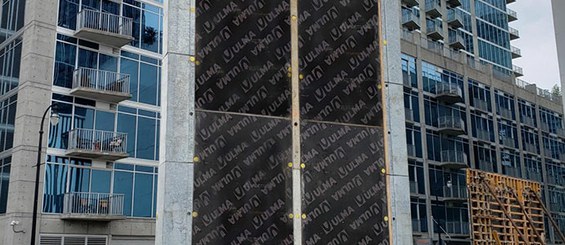

Strong and versatile modular wall and column formwork in imperial measurements for building construction or civil engineering projects.
Lightweight, medium duty handset panel formwork in imperial measurements for concrete walls, columns and pilasters in building construction and civil engineering projects.

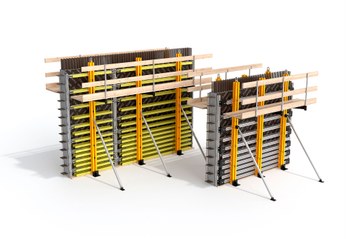

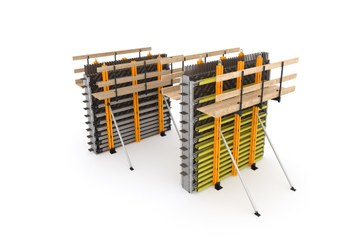

Steel waler and wood or aluminum beam forming modular system designed for architectural concrete finish walls and large formwork gangs.

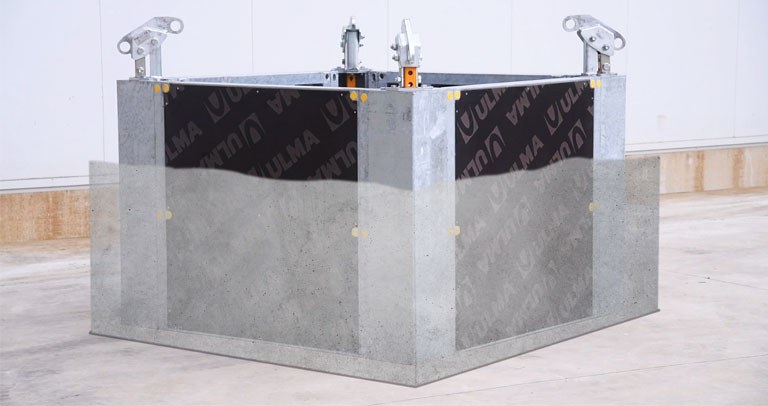

A simple solution for supporting shaft internal formwork or walkway support. Perfect for elevator and staircase shafts, building cores, hollow piers, etc.

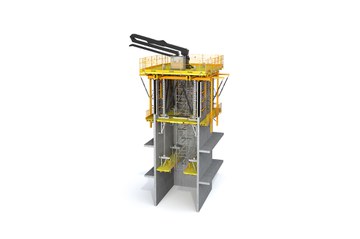

Flexible rail-guided climbing formwork for forming cores, shear walls and perimeter walls using a hydraulic lifting mechanism
