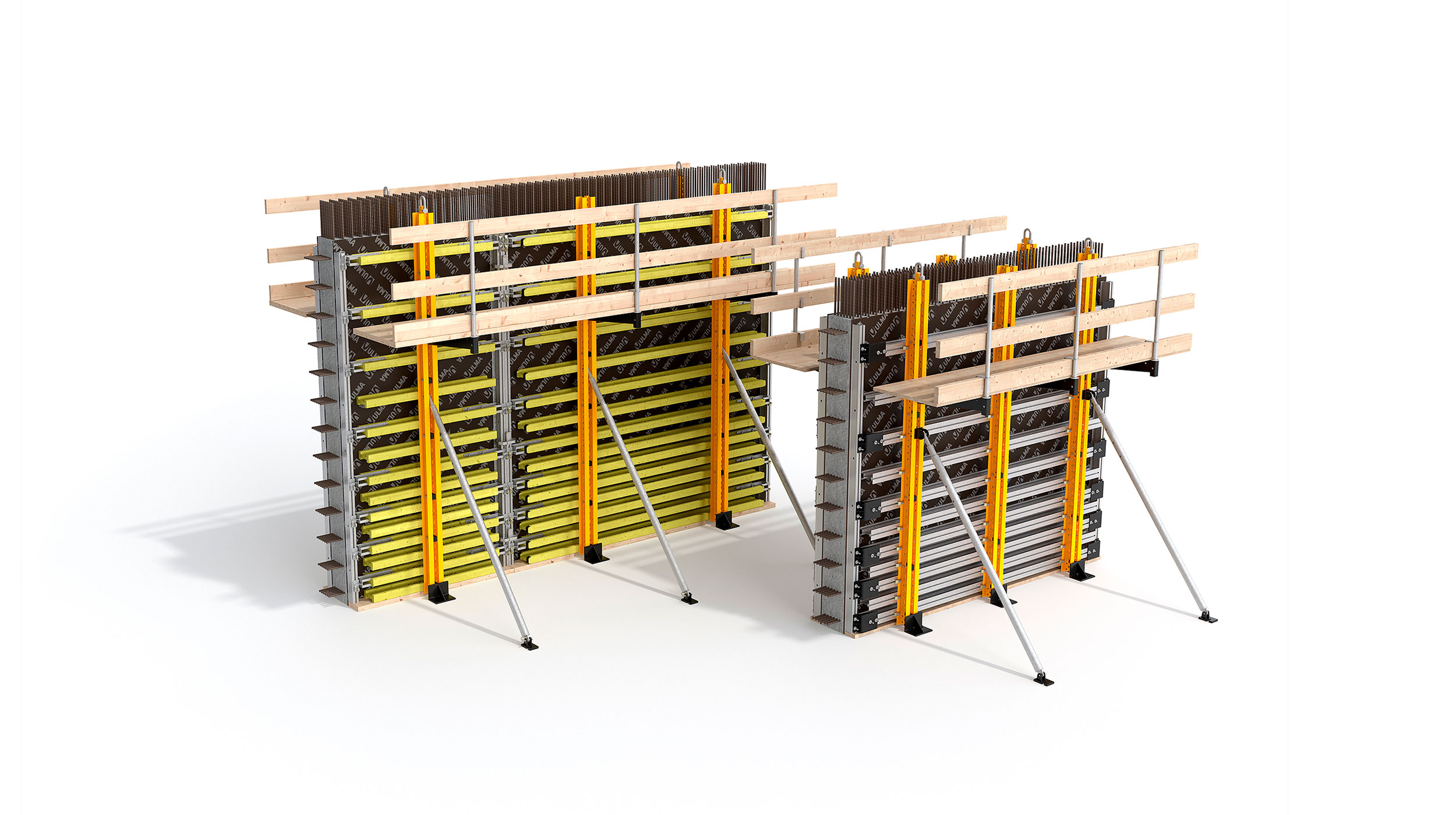

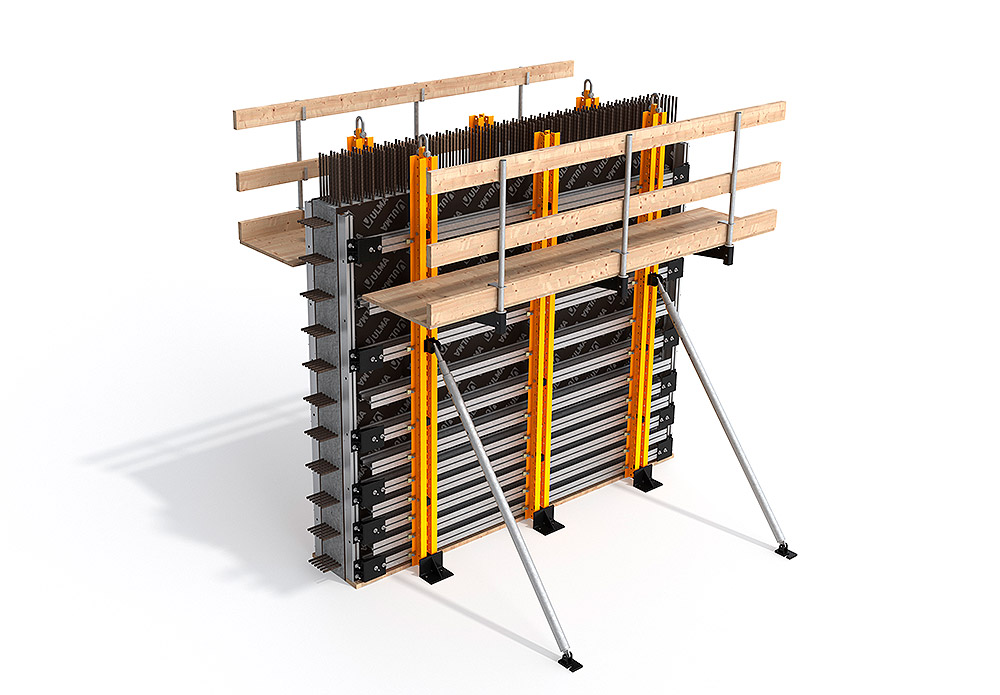

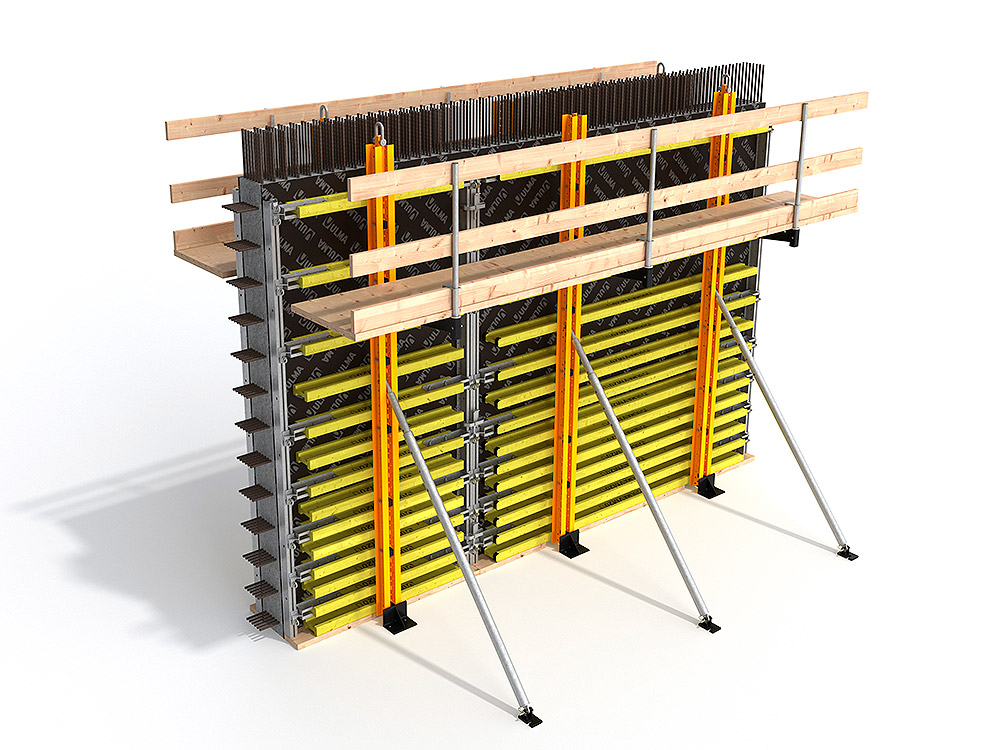

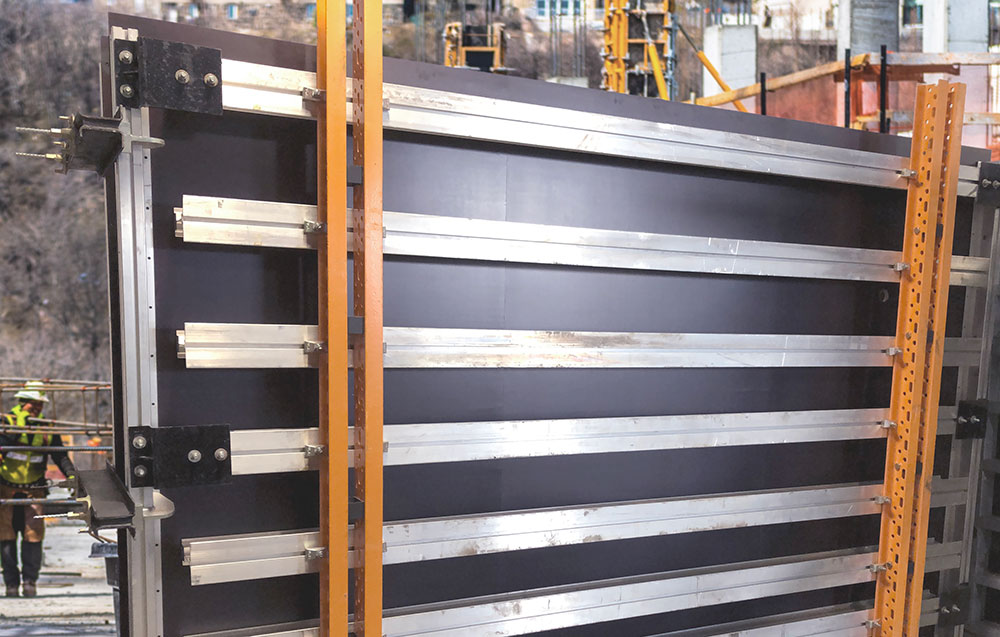

The MK20 FORM Straight is a steel waler and wood or aluminum beam forming system designed for architectural concrete finish walls and large formwork gangs.

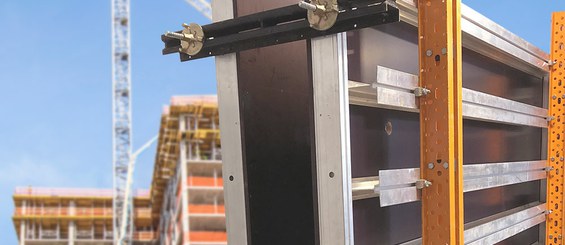

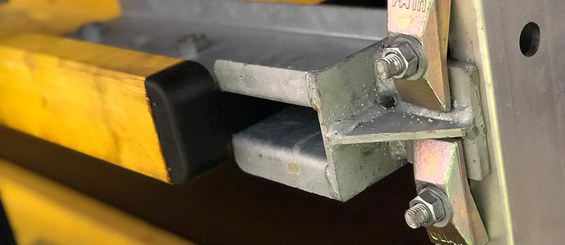

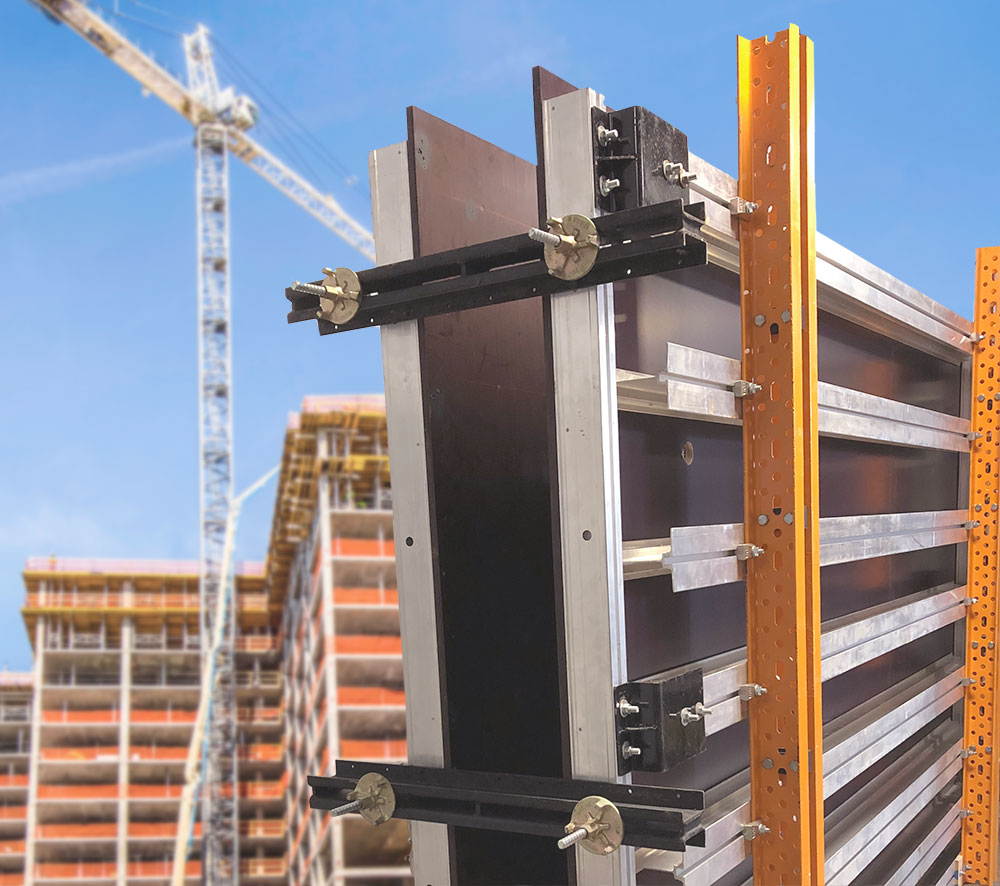

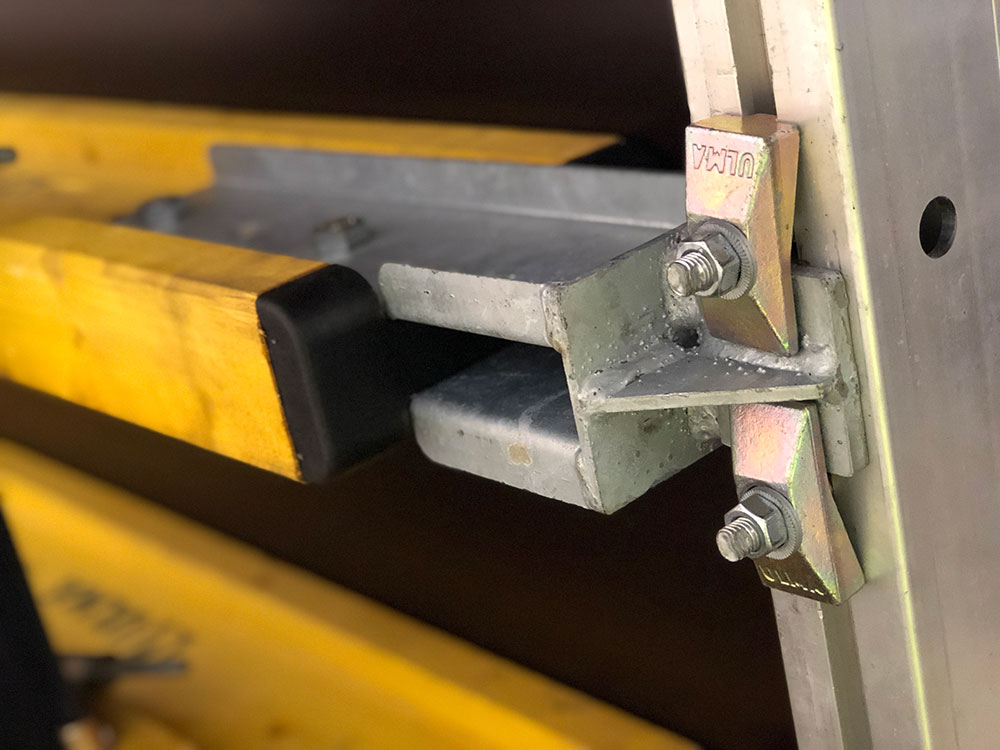

With the introduction of the MK20 aluminum profile other ULMA forming systems such as MEGALITE and MEGAFORM can easily attach to any MK20 panel using only the MEGAFORM clamp. This allows for corners, pilasters, and cores to be formed quickly without any additional walers, angles, or bolts, as necessary.
Applications:
- Building projects with geometries such as Straight walls, Corners, Pilasters, and Building Cores.
- Projects that require smooth and clean, concrete finishes or architectural liners/patterns.
- Large formwork gangs that need to be cycled multiple times thru the job site.
- MK20 FORM is a steel waler and wood or aluminum beam forming system designed for architectural concrete finish walls and large formwork gangs.
- With the combination of ULMA’s MEGALITE and MEGAFORM forming systems can form multiple geometries.
- Wide range of customization. Panels can be tailored in height and width.
- Quickly and effortlessly attaches to any ULMA Tilt-back or Rollback Climbing system.
- It can be built using either C6 or MK-120 channels.
- Versatility:
- Wide range of customization. Panels can be tailored in height and width.
- Forming panels can be assembled on-site or preassembled for ease of use.
- Architectural walls:
- Due to the nature of MK20 assembly, architectural pattern or rustication can be produced. Architectural liners can also be easily attached, removed, and reused.
- Plywood and tie hole locations to fit job-specific requirements.
- Concrete finish:
- High-Quality phenolic plywood allow for smooth architectural finishes.
- Climbing:
- Quickly and effortlessly attaches to any ULMA Tilt-back or Rollback Climbing system.
- It can be built using either C6 or MK-120 channels.
- Customizable panels for different lengths and heights as required.
- MK20 FORM has a standard pour pressure of 1,200 psf.
