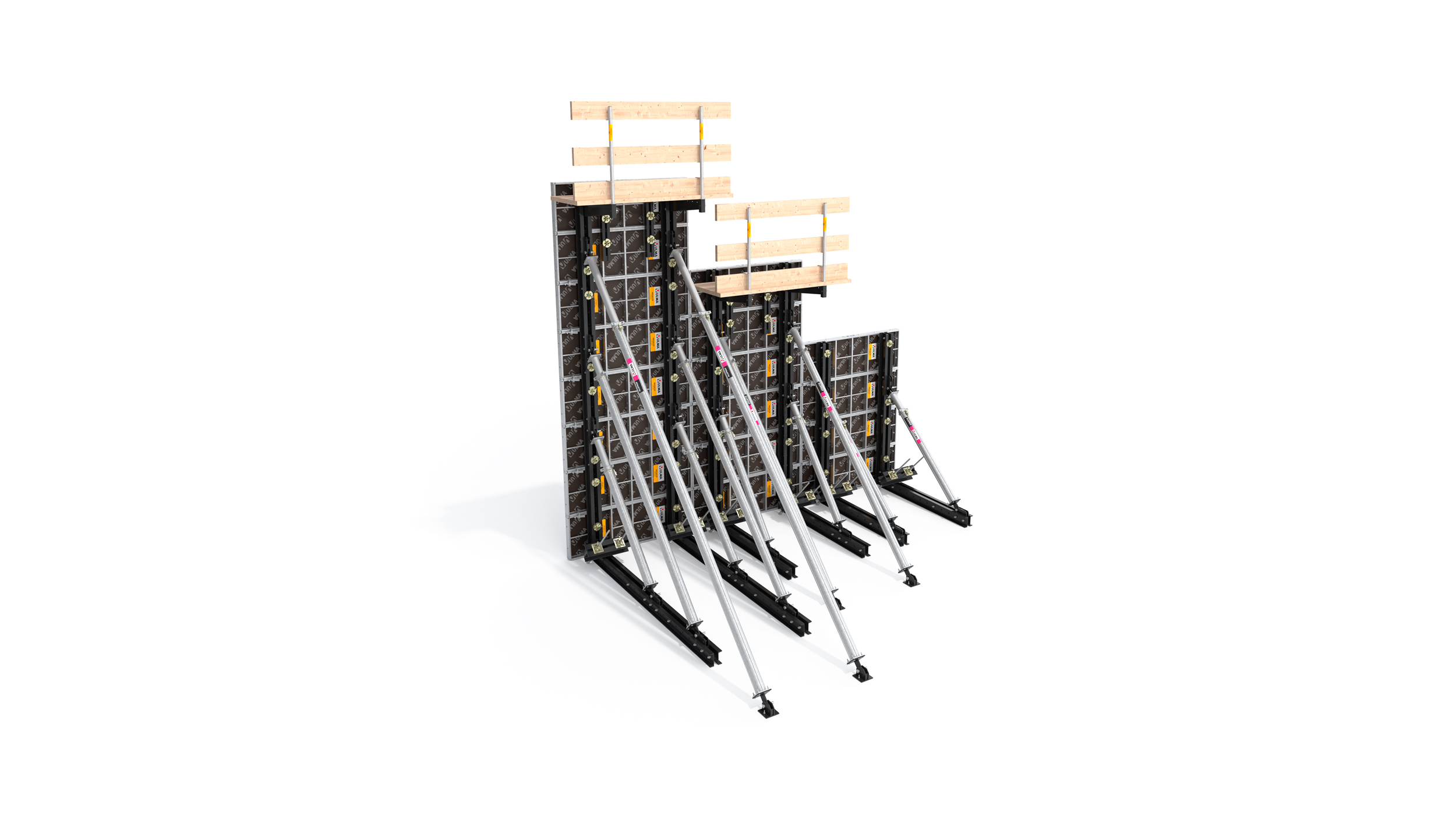

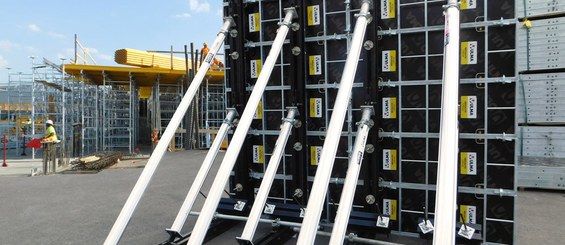

ALUPROP FORMING is a single-sided handset concrete forming system used in site conditions that do not allow for a lot of space or movement and the use of a crane is not possible.
The systems primary components include ULMA’s lightweight and versatile handset forming system MEGALITE and hi-capacity ALUPROP post shores.
Applications:
- Ideal for shafts, tunnels, or any other site conditions that do not allow the use of a crane
- Projects that need single-sided forming support due to site conditions and restrictions
- Projects that do not allow for a lot of space or movement and necessitate small forming panels and equipment
- Combines easily with ULMA’S MEGALITE Forming System and is available in:
- Panel Height Range: 8’, 6’, and 4’
- Panel Width Range: 30”, 24”, 18”, 12”, 6”, 4”, and 2”
Best utilized for Heights ranging from 8’ to 16’
- Light weight components allow for quick and easy assembly and dismantling.
- Permissible concrete pressure up to 1200 psf depending on forming height.
- Works well in conjunction with STAY-FORM Panels.
- The only tools necessary are a hammer and impact wrench.
- High Productivity
- Easy to connect components allow for quick and easy use.
- Light weight components and panels.
- Can be placed in areas with limited space or accessibility.
- Can form single sided walls without the need of a crane.
- Can form corners, pilasters and straight walls without any additional equipment or form panels.
- Excellent Form Finishes
- High-quality phenolic plywood or composite board provide excellent concrete finishes.
- Safety
- Integrated safety handles for work at multiple heights.
- Walkway platforms provide a stable and safe working environment.
Lightweight, medium duty handset panel formwork in imperial measurements for concrete walls, columns and pilasters in building construction and civil engineering projects.
High load-bearing capacity shoring posts to shore horizontal formwork and to meet shoring requirements, including re-shoring.
Strong and versatile modular wall and column formwork in imperial measurements for building construction or civil engineering projects.
Single-sided forming systems for one-sided wall applications ranging between 8’ to 30’. Compatible with all ULMA wall formwork panels.
