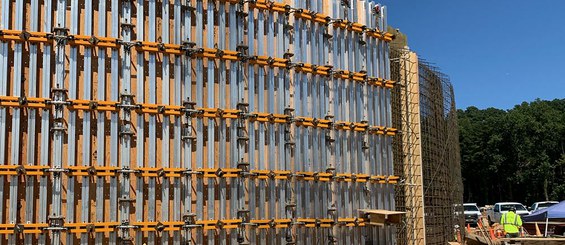

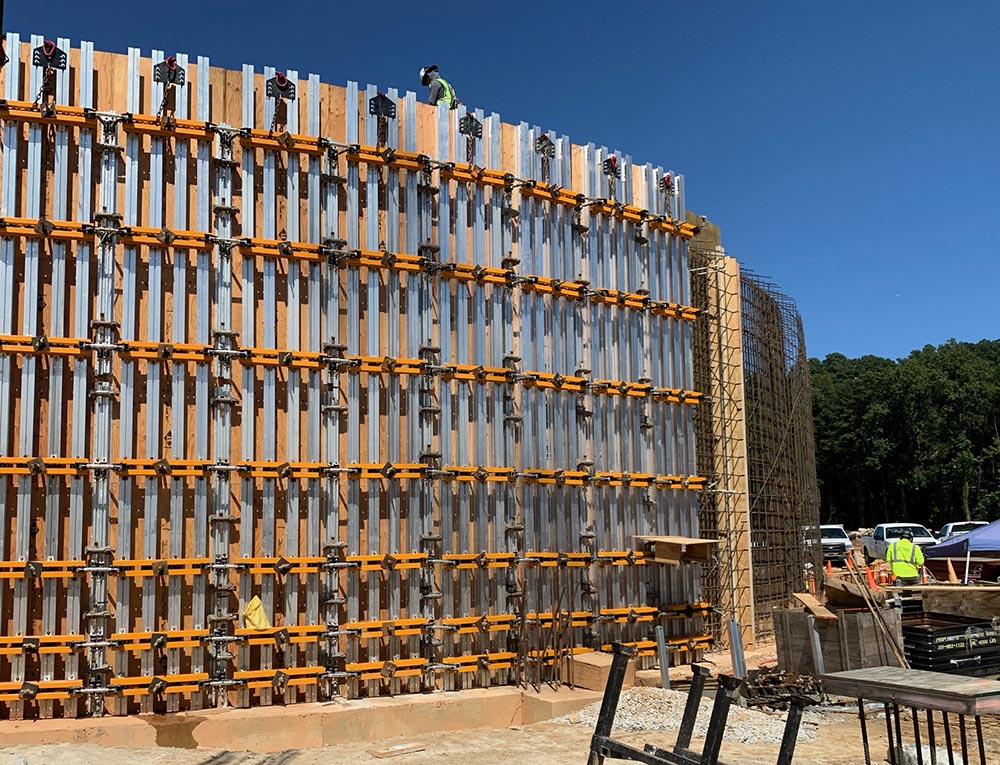

The MK20 FORM Circular system has been created to provide a solution to form circular/curved walls. The system is composed of modular panels, which are pre-assembled according to the required radius.

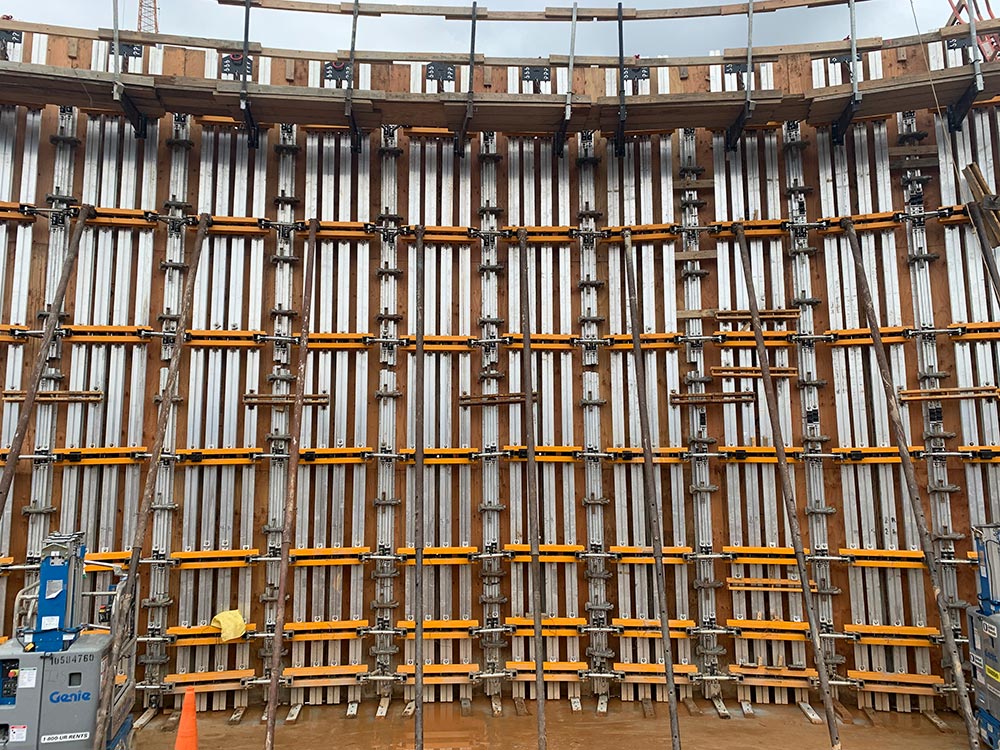

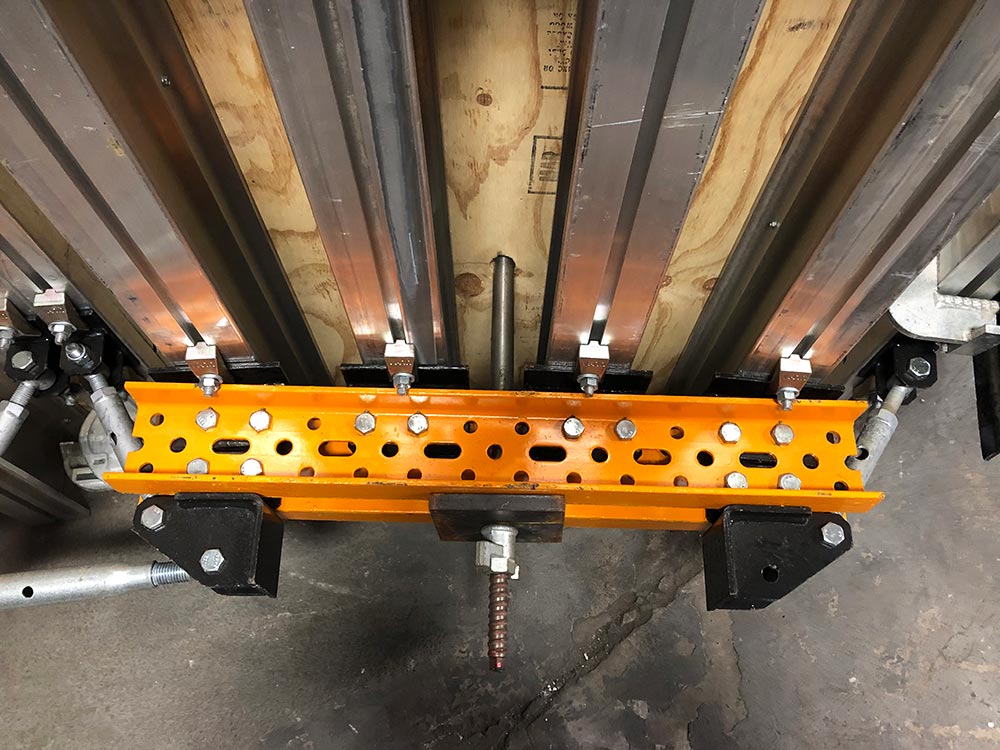

Panels consist of horizontal steel walers, vertical Aluminum Stringers and plywood form face.
The special MK20 aluminum profile allows MK20 FORM to combine with other formwork systems using the MEGAFORM clamp seamlessly.
- MK20 FORM Circular is designed to provide a solution to form circular/curved walls with a minimum inside radius of 10’ – 0”.

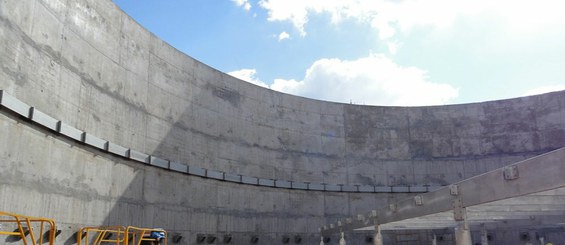

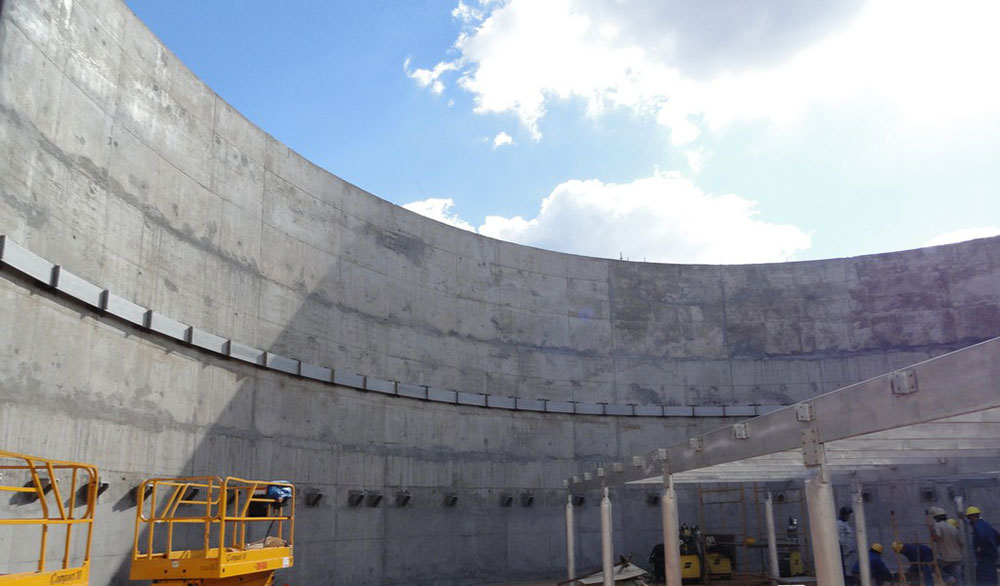

- Ideal for round structures such as water tanks, clarifiers, silos and other circular structures.
- Designed for a minimum concrete pressure of 1,200 psf.
- Panel height range: : 4’- 0”, 8’- 0”, 10’- 0”, 12’- 0”, 14’-0”, 16’- 0”, 18’- 0”, 20’- 0”.
- Panel widths: Outside panel: 4’- 0” or 8’- 0” wide.
- Inside panel: as required to work with an outside panel based on radius and wall thickness.
- Cost-Efficient:
- Architectural liners can also be easily attached, removed, and reused.

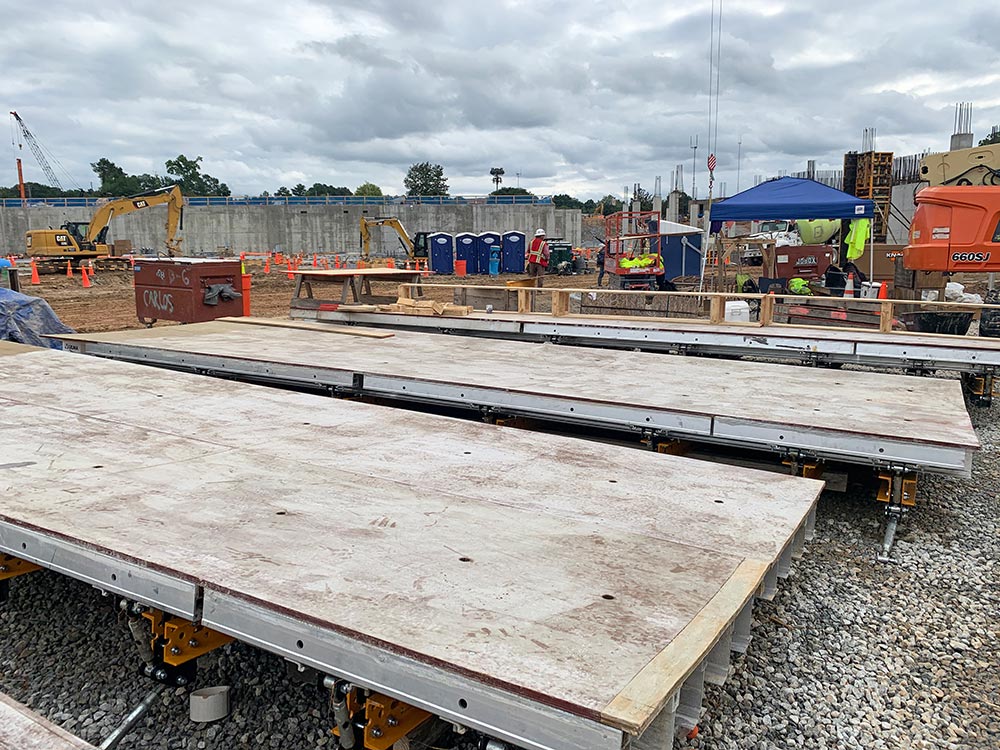

- Reduced Installation time: arrives pre-assembled in ready to use condition.
- Simple design with fewer components makes placement fast, easy and efficient.
- Concrete finish:
- Available high-quality phenolic plywood for smooth concrete finish.
- Versatility:
- Easily integrates with all necessary formwork safety accessories.
- MK20 FORM Circular with combination of ULMA’s MEGAFORM and MK20 FORM Straight forming systems, can form curved walls and complex geometries.
- MK20 FORM Circular accommodates most tanks solutions and easily allows rebar penetration for troughs.
- MK20 FORM Circular combines effortlessly with ULMA’s Single-Sided wall forming solutions.
