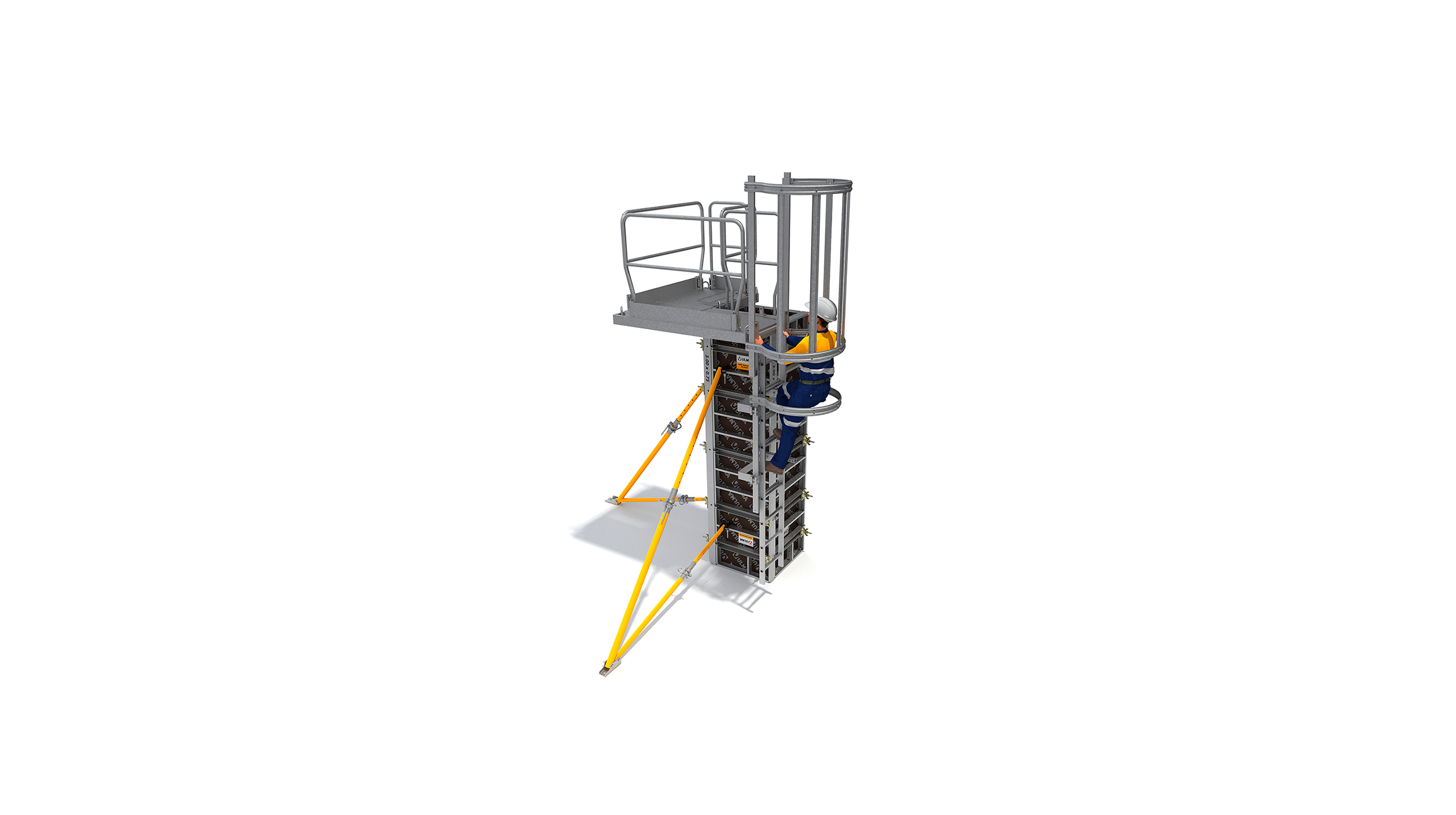

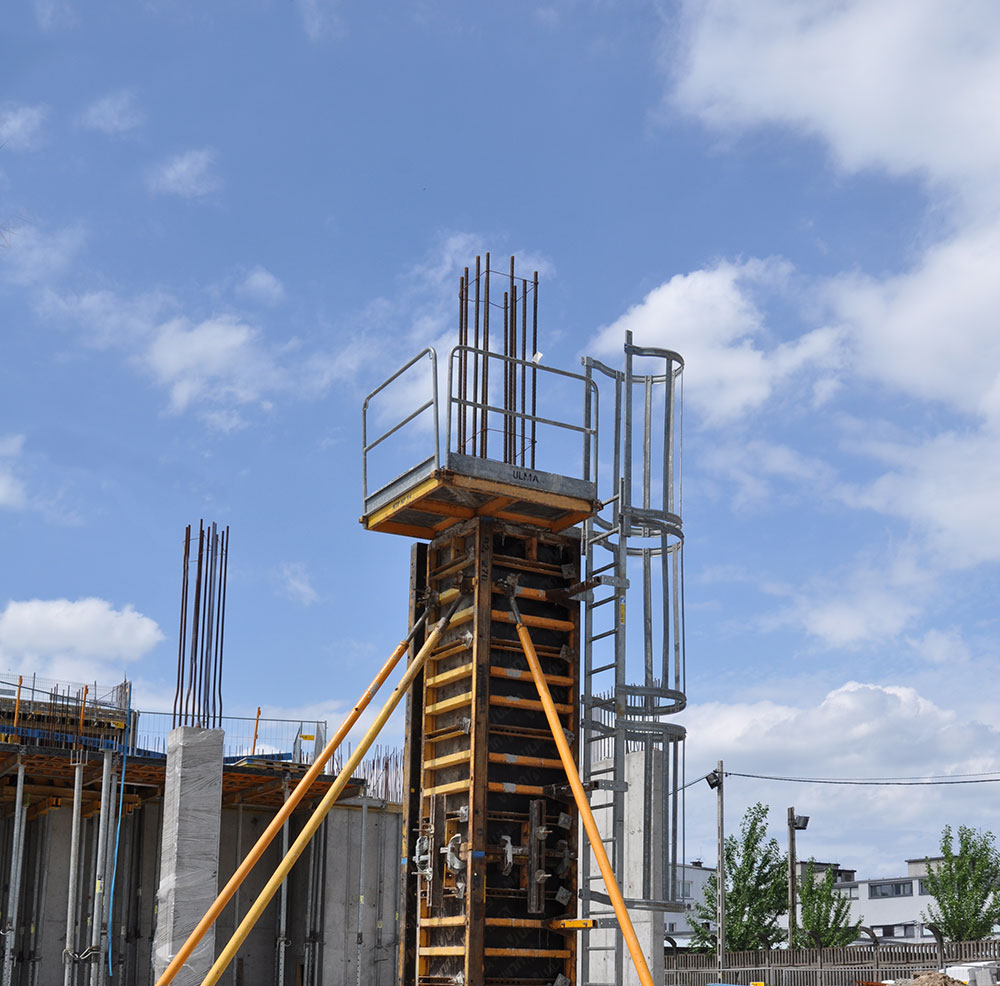

Safety equipment designed for column concreting tasks. System assembly can be carried out on the ground, which guarantees maximum safety for the worker, and it can be adapted to any column size. All safety and lifting items are incorporated into the platform, making it a cost-efficient and safe system for column construction.
- Dimensions: 5.41 ft. x 2.46 ft.
- Maximum load: 1.5 kN/m², class 2, according to standard EN-12811.
- Platform (main structure and outside handrails).
- Inside handrails.
- Ladder with protection.
- Compatible with different column formwork systems of ULMA: ORMA, LGR, NEVI, LGW, MEGAFORM, MEGALITE, F-4 MAX and CLR.
- Guaranteed safety for the pouring of columns.
- Simple and easy to erect and dismantle on the ground as formwork panels.
- One platform per column for complete safety.
- Adaptable to any column size.
- Direct fixing to formwork panels (without lower support structure).
- Entire platform perimeter protected with inside handrails.
- Fixing brackets for different access ladders.
- Folding outside handrails (minimum volume of transport).
- Built-in lifting elements.
