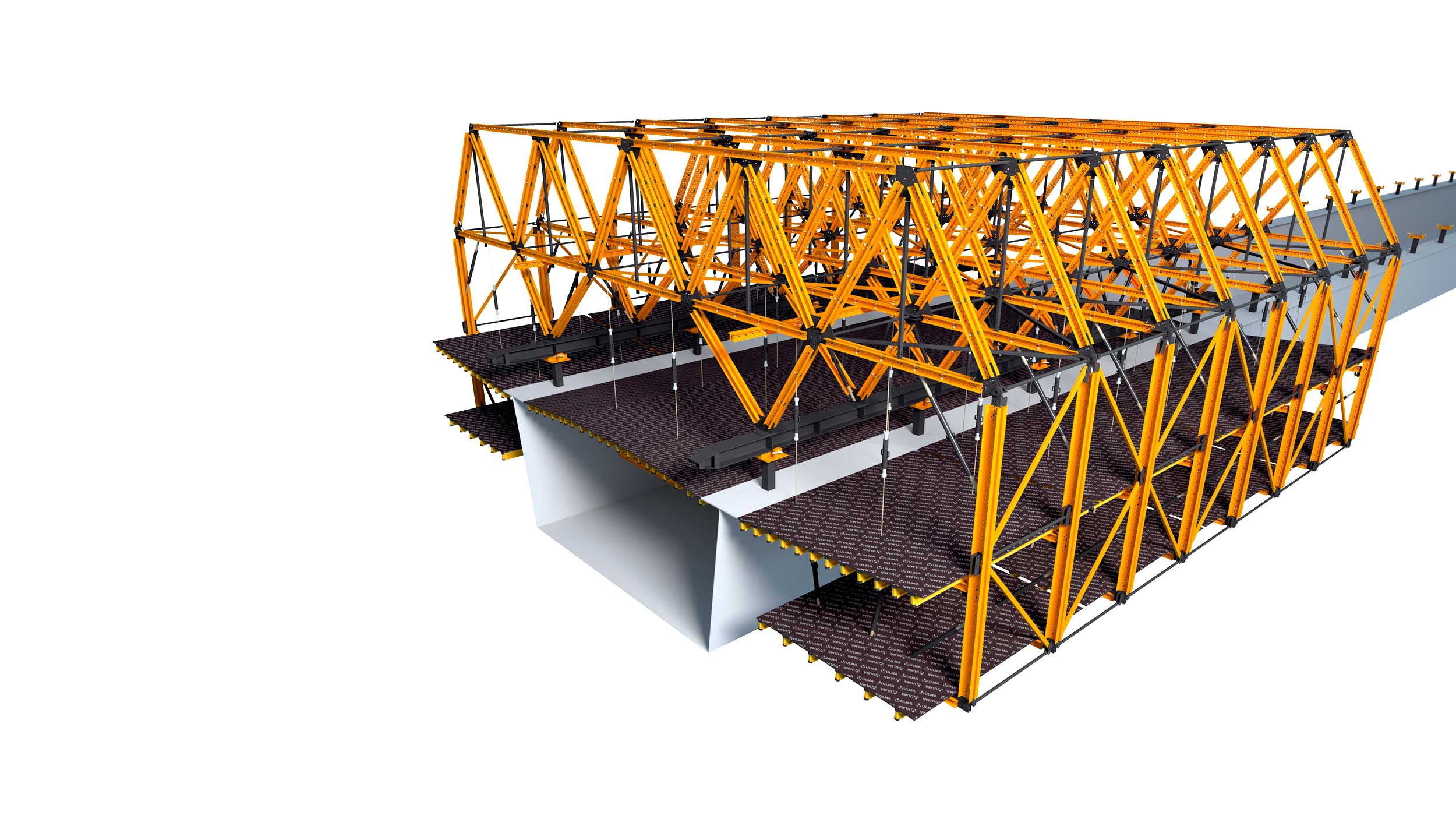

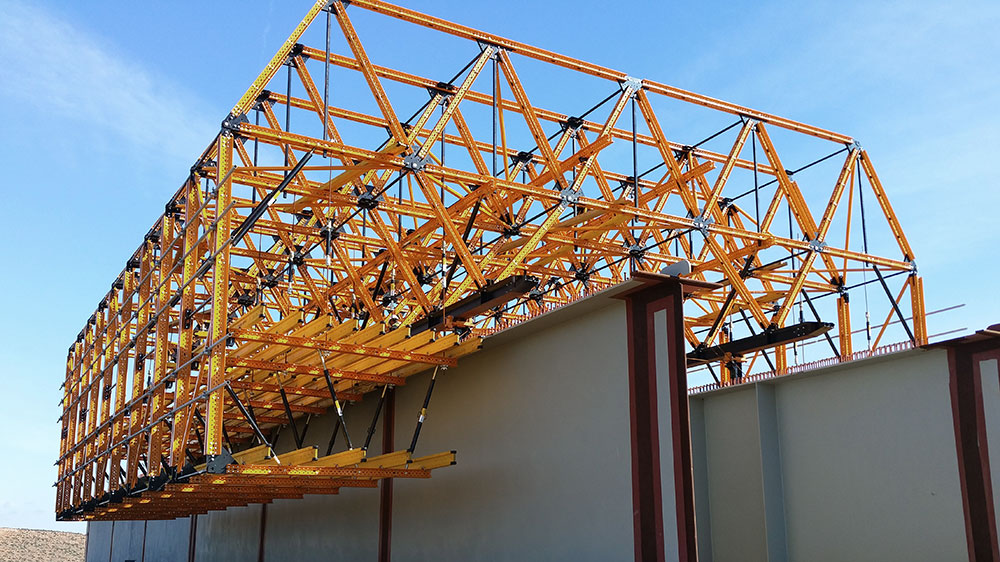

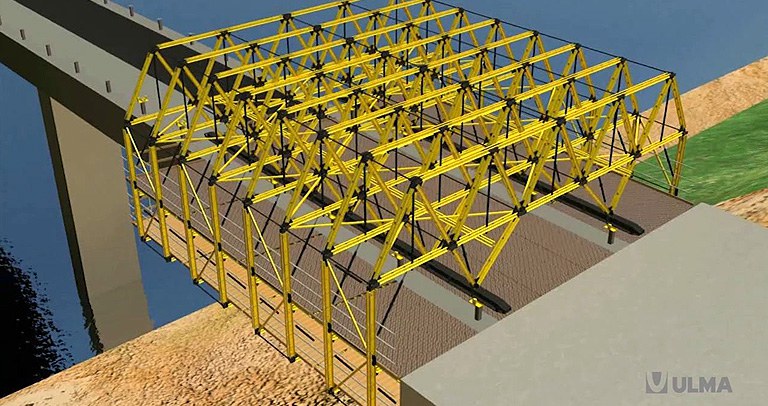

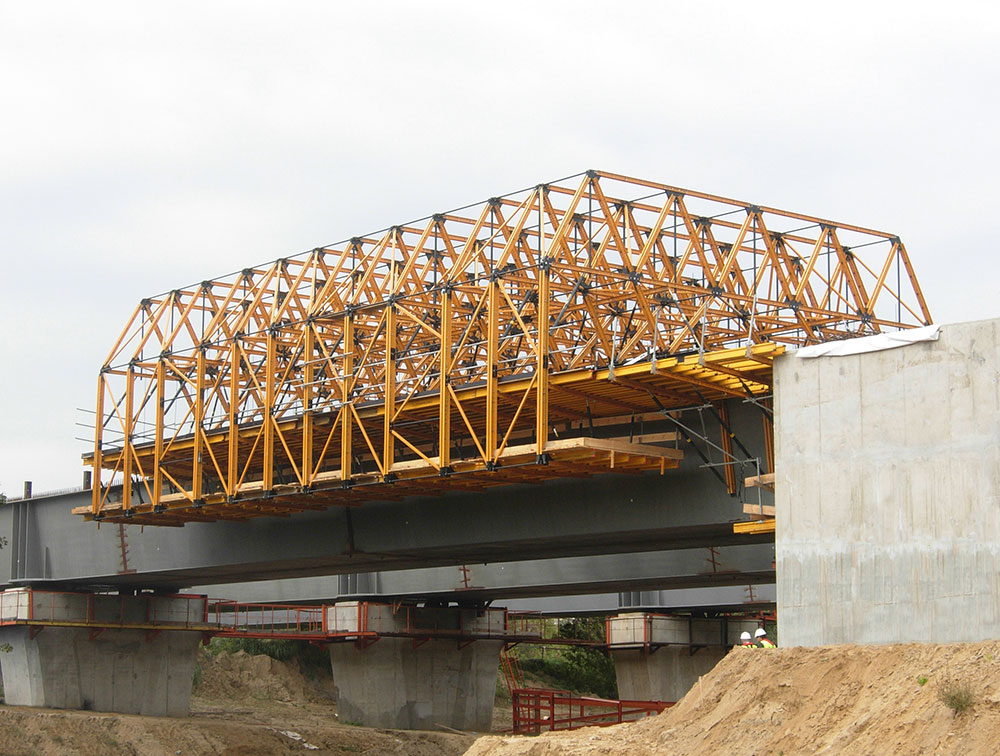

The MK deck flange formwork carriage is efficient system for the construction of deck flanges on metal bridges and partially prefabricated structures.
General components:
- Main structure that receives the concrete pouring loads.
- Bracing to counteract the effects of wind and transverse movements.
- Formwork that is in contact with the concrete.

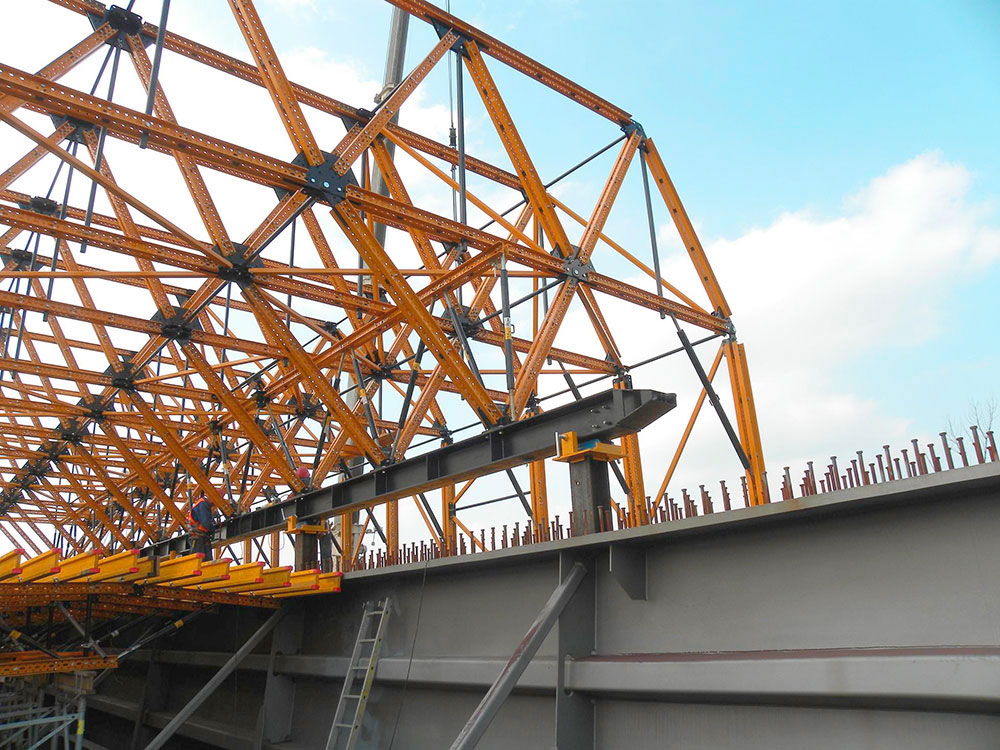

- The assembly is supported on a beam serving as rail, which moves onto the rolling components arranged along the entire bridge.
- The size and design varies depending on the cantilever of the bridge flanges. Lightweight flange formwork carriages can be configured for the construction of small deck flanges or heavy carriages for the construction of large deck flanges.
- Safety and access components: working platforms, safety handrails, etc., depending on the requirements of each project.
- Heavy duty structure with high load bearing capacities.
- Quick work cycles. Easy use and repetitive movements.
- Movement with auxiliary push or pull systems.

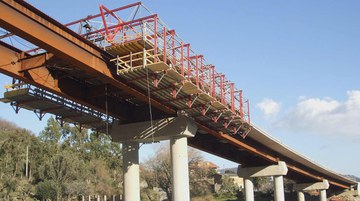

Plati Viaduct, Calabria, Italy
The Plati Viaduct steel-concrete composite bridge is part of the Bovolino - Bagnara motorway in Calabria, southern region of Italy. This project consists of two 320 m and 400 m long viaducts.

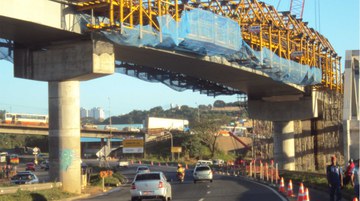

Bypass road and motorway Port Of El Salvador, Brazil
This project is part of the Growth Acceleration Program (PAC) funded by the Government of the State of Bahia.

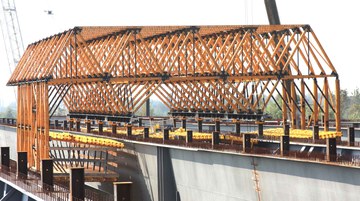

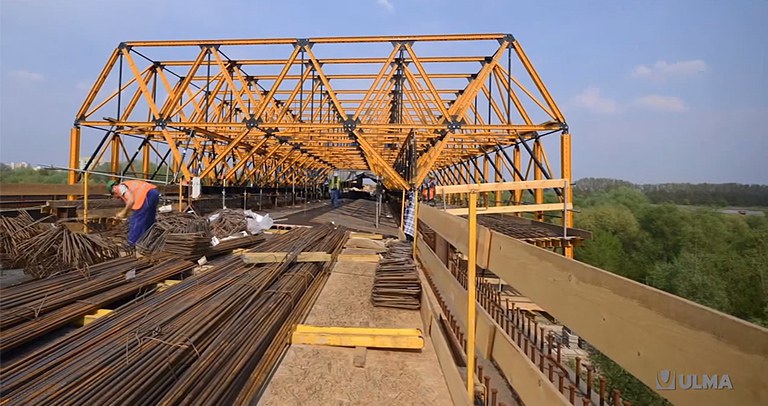

Maria Skłodowska-Curie Bridge, Warsaw, Poland
The 795 m long bridge has three separate carriageways: two of 13.36 m width for vehicular traffic and a third of 12.76 m for trams, pedestrians and bicycles.
